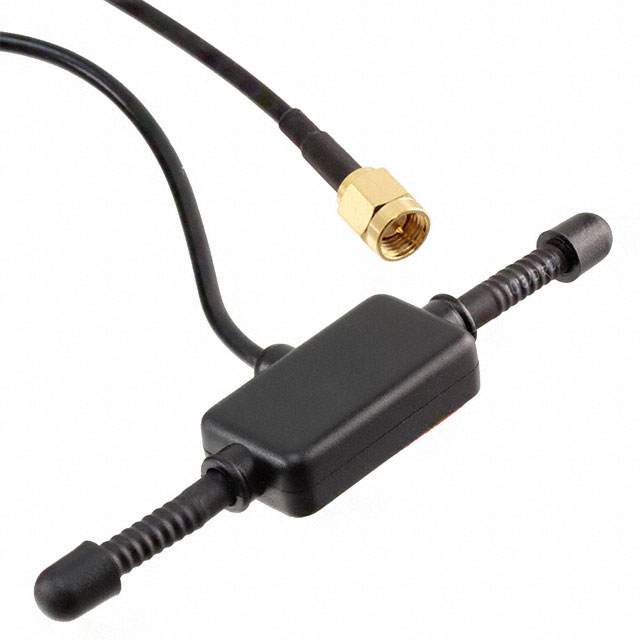

ALPHA18/3M/SMAM/S/S/26 - ALPHA18/3M/SMAM/S/S/26

ALPHA18/3M/SMAM/S/S/26

Active
Siretta Ltd

RF ANT 850/900MHZ WHIP CTR SMA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetWhat Parameters are Important for Cellular Antenna Evaluation?
ALPHA18/3M/SMAM/S/S/26 - ALPHA18/3M/SMAM/S/S/26

ALPHA18/3M/SMAM/S/S/26

Active
Siretta Ltd

RF ANT 850/900MHZ WHIP CTR SMA

Deep-Dive with AI

DocumentsDatasheetWhat Parameters are Important for Cellular Antenna Evaluation?

Technical Specifications

Parameters and characteristics for this part

SpecificationALPHA18/3M/SMAM/S/S/26
Antenna TypeWhip, Center-Fed Double
ApplicationsUMTS, GSM, GPRS
Frequency (Center/Band)1.8 GHz, 900 MHz, 850 MHz, 1.9 GHz, 2.1 GHz
Gain3 dBi
Height (Max) [Max]27.71 mm
Height (Max) [Max]1.091 in
Mounting TypeAdhesive
Number of Bands [custom]5
RF Family/StandardCellular
VSWR2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 10$ 11.74
LCSCPiece 1$ 22.10
200$ 8.82
500$ 8.53
1000$ 8.38

Description

General part information

ALPHA18 Series

RF ANTENNA GPRS, GSM, UMTS Whip, Center-Fed Double SMA Male Adhesive
