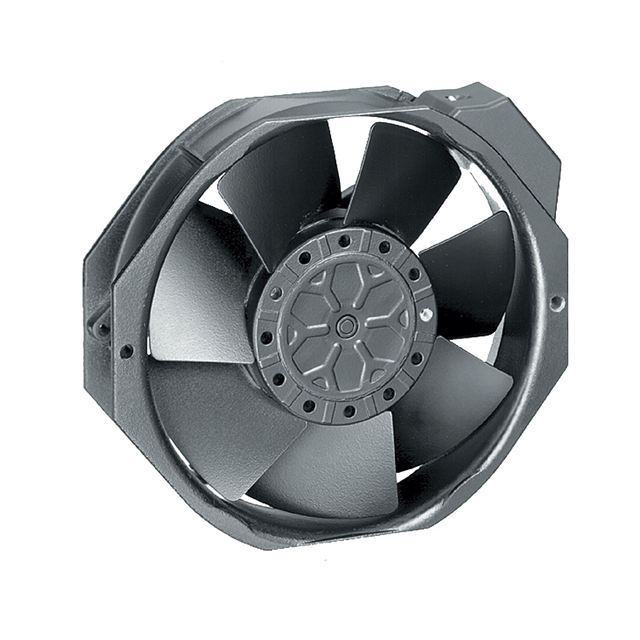

W2E142-BB01-11

Active

ebm-papst Inc.

FAN AXIAL 230VAC 172X150X38MM

Deep-Dive with AI

Search across all available documentation for this part.

W2E142-BB01-11

Active

ebm-papst Inc.

FAN AXIAL 230VAC 172X150X38MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W2E142-BB01-11

Approval Agency	CE, EAC
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP22
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max]	85 °C
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	28 W
RPM	3350 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Termination	2 Terminals
Voltage - Rated	230 VAC
Width [y]	38 mm

W2E142 Series

Part	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Material - Blade	Material - Frame	Noise	Width [y]	Air Flow	Air Flow	Fan Type	Termination	Approval Agency	Voltage - Rated	Bearing Type	Power (Watts)	RPM	Ingress Protection	Weight	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [y]
ebm-papst Inc. W2E142-CC15-16	Rectangular/Rounded	150 mm	172 mm	907.2 g	2 lbs	Steel	Aluminum	54 dB	38 mm	175 CFM	4.9 mł/min	Tubeaxial	2 Terminals	CE CSA UL	230 VAC	Ball	16 W
ebm-papst Inc. W2E142-BB01-31	Rectangular/Rounded	150 mm	172 mm	1.8 lbs		Steel	Aluminum		38 mm			Tubeaxial	2 Terminals	CCC CSA UL VDE	230 VAC	Ball	28 W	3350 RPM	IP22	816.5 g
ebm-papst Inc. W2E142-BB05-01	Rectangular/Rounded	150 mm	172 mm	1.8 lbs		Steel	Aluminum	57 dB	38 mm	230 CFM	6.44 m³/min	Tubeaxial	2 Terminals	CCC CE CSA GOST UL VDE	115 VAC	Ball	28 W	3350 RPM		816.5 g	0.25 A	80 °C	-40 °C	-40 °C	80 C
ebm-papst Inc. W2E142-BB01-11	Rectangular/Rounded	150 mm	172 mm			Steel	Aluminum		38 mm			Tubeaxial	2 Terminals	CE EAC	230 VAC	Ball	28 W	3350 RPM	IP22			85 °C	-25 °C	-25 °C	85 °C	Capacitor Thermal Overload Protector (TOP)
ebm-papst Inc. W2E142-BB05-10	Rectangular/Rounded	150 mm	172 mm	1.8 lbs		Steel	Aluminum		38 mm			Tubeaxial	2 Terminals		115 VAC	Ball	28 W	3350 RPM	IP22	816.5 g	0.25 A	65 °C	-25 °C	-25 °C	150 °F
ebm-papst Inc. W2E142-BB05-87	Rectangular/Rounded	150 mm	172 mm	1.8 lbs		Steel	Aluminum	57 dB	38 mm	230 CFM	6.44 m³/min	Tubeaxial	2 Terminals	CE CSA UL	115 VAC	Ball	28 W	3350 RPM		816.5 g	0.25 A	80 °C	-40 °C	-40 °C	80 C
ebm-papst Inc. W2E142-BB01-28	Rectangular		172 mm			Steel	Aluminum		38 mm			Tubeaxial	2 Terminals	CE CSA UL VDE	230 VAC	Ball	28 W	3350 RPM	IP22			65 °C	-25 °C	-25 °C	65 °C	Capacitor Thermal Overload Protector (TOP)	150 mm
ebm-papst Inc. W2E142-BB01-87	Rectangular/Rounded	150 mm	172 mm	907.2 g	2 lbs	Steel	Aluminum	57 dB	38 mm	230 CFM	6.44 m³/min	Tubeaxial	2 Terminals		230 VAC	Ball	28 W					80 °C	-40 °C	-40 °C	80 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 151.16

Description

General part information

W2E142 Series

Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 2 Terminals
