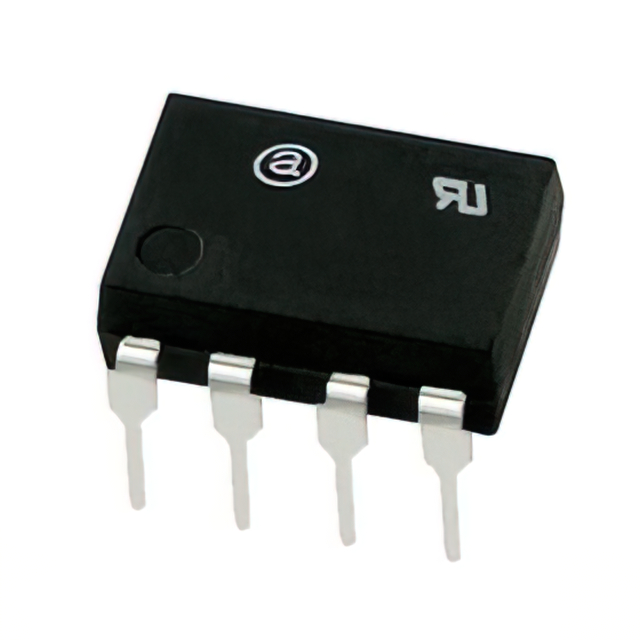

APR212A608000E00G
ActiveAmphenol Anytek
RELAY MOS 8 PIN DIP 600V AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APR212A608000E00G
ActiveAmphenol Anytek
RELAY MOS 8 PIN DIP 600V AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APR212A608000E00G |
|---|---|
| Approval Agency | cURus, UR |
| Circuit | DPST-NO (2 Form A) |
| Load Current | 70 mA |
| Mounting Type | Through Hole |
| On-State Resistance (Max) [Max] | 70 Ohms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 0.3 in |
| Package / Case | 8-DIP |
| Package / Case | 7.62 mm |
| Supplier Device Package | 8-DIP |
| Voltage - Input [Max] | 1.5 VDC |
| Voltage - Input [Min] | 0.9 V |
| Voltage - Load [Max] | 600 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.08 | |
| 10 | $ 4.77 | |||
| 45 | $ 4.02 | |||
| 90 | $ 3.81 | |||
| 270 | $ 3.39 | |||
| 540 | $ 3.18 | |||
| 1035 | $ 2.97 | |||
Description
General part information
APR212 Series
Solid State DPST-NO (2 Form A) 8-DIP (0.300", 7.62mm)
Documents
Technical documentation and resources
