C0746A.18.10

Active

Prysmian Group

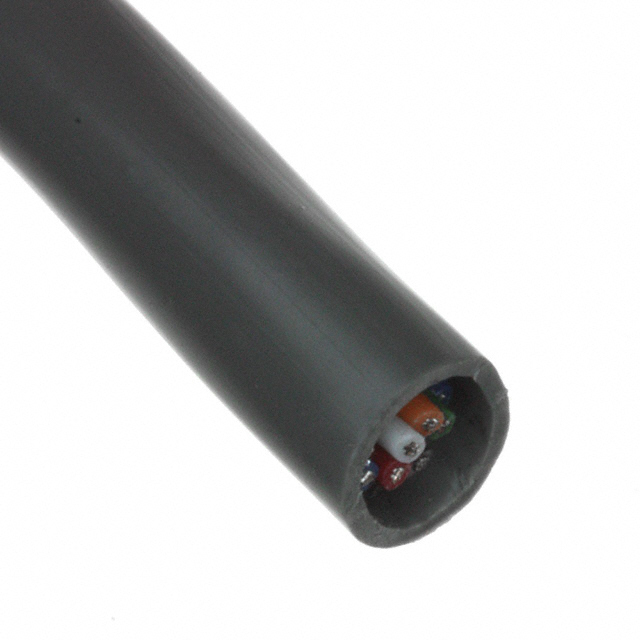

CABLE 15CON 24AWG GRAY SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 15CON 24AWG GRAY SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C0746A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.276 in
Jacket (Insulation) Diameter [diameter]	7.01 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Material	Length [x]	Length [x]	Jacket Color	Conductor Material	Voltage	Shield Type	Features	Conductor Insulation	Number of Conductors	Jacket (Insulation) Material	Length	Length
Prysmian Group C0746A.18.10	24 AWG	32 AWG	7	-20 C	80 C	Computer	100 %	0.276 in	7.01 mm	Multi-Conductor	Flexfoil®	500 '	152.4 m	Gray	Copper Tinned	300 V	Foil	Drain Wire	Poly-Vinyl Chloride (PVC)	15	Poly-Vinyl Chloride (PVC)
Prysmian Group C0746A.41.10	24 AWG	32 AWG	7	-20 C	80 C	Computer	100 %	0.276 in	7.01 mm	Multi-Conductor	Flexfoil®	50 ft		Gray	Copper Tinned	300 V	Foil	Drain Wire	Poly-Vinyl Chloride (PVC)	15	Poly-Vinyl Chloride (PVC)	15.24 m 304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25000	$ 1.24

General part information

15 Conductor Multi-Conductor Cable Gray 24 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
