TBP01P1W-508-12BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, W SCR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TBP01P1W-508-12BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, W SCR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBP01P1W-508-12BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Nickel
Current - IEC	20 A
Current - UL	16 A
Features	Retention Latches (Non-Wire Side), Mating Flange
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	12
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm²	2.5 mm²
Wire Strip Length	7 mm

TBP01P1 Series

Part	Pitch [x]	Pitch [x]	Material Flammability Rating	Voltage - UL	Insulation Height	Insulation Height	Current - IEC	Wire Gauge or Range - mm²	Current - UL	Contact Mating Finish	Number of Positions	Positions Per Level	Wire Strip Length	Screw Size	Contact Material	Mounting Type	Voltage - IEC	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Number of Levels	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Features	Wire Gauge or Range - mm˛	Number of Positions
CUI Devices TBP01P1-508-11BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A	2.5 mm²	16 A	Nickel	11	11	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp
CUI Devices TBP01P1W-508-02BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A		16 A	Nickel	2	2	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp	Mating Flange Retention Latches (Non-Wire Side)	2.5 mm˛
CUI Devices TBP01P1W-508-16BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A	2.5 mm²	16 A	Nickel		16	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp	Mating Flange Retention Latches (Non-Wire Side)		16
CUI Devices TBP01P1W-508-05BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A		16 A	Nickel		5	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp	Mating Flange Retention Latches (Non-Wire Side)	2.5 mm˛
CUI Devices TBP01P1-508-12BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A	2.5 mm²	16 A	Nickel	12	12	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp
CUI Devices TBP01P1-508-20BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A		16 A	Nickel	20	20	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp		2.5 mm˛
CUI Devices TBP01P1-508-05BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A	2.5 mm²	16 A	Nickel		5	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp
CUI Devices TBP01P1W-508-12BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A	2.5 mm²	16 A	Nickel	12	12	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp	Mating Flange Retention Latches (Non-Wire Side)
CUI Devices TBP01P1W-508-06BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A	2.5 mm²	16 A	Nickel	6	6	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp	Mating Flange Retention Latches (Non-Wire Side)
CUI Devices TBP01P1-508-16BE	0.2 in	5.08 mm	UL94 V-0	300 V	0.591 in	15 mm	20 A		16 A	Nickel		16	7 mm	M3	Copper Alloy	Free Hanging (In-Line)	320 V	4.4 Lb-In	0.5 Nm	28 AWG	12 AWG	Plug Female Sockets	1	Blue	-40 °C	105 ░C	Screw - Rising Cage Clamp		2.5 mm˛	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.40
		10	$ 2.22
		25	$ 1.99
		50	$ 1.86
		225	$ 1.68
		450	$ 1.63
		675	$ 1.61
		1125	$ 1.59
		5175	$ 1.54

Description

General part information

TBP01P1 Series

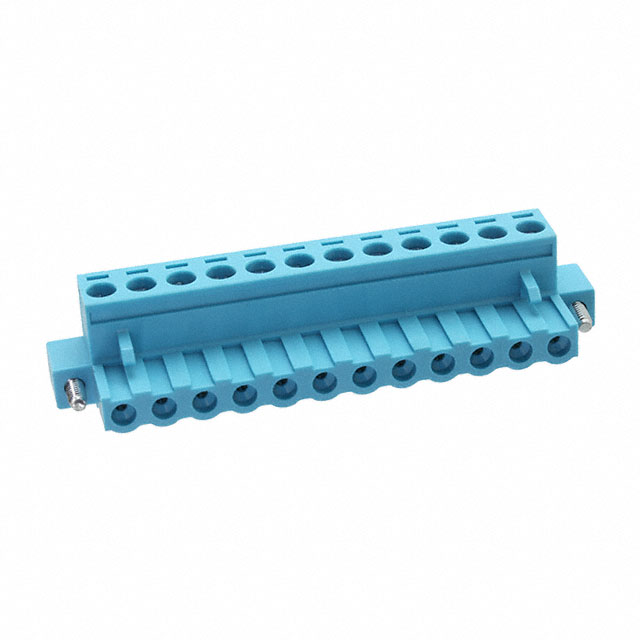

12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
