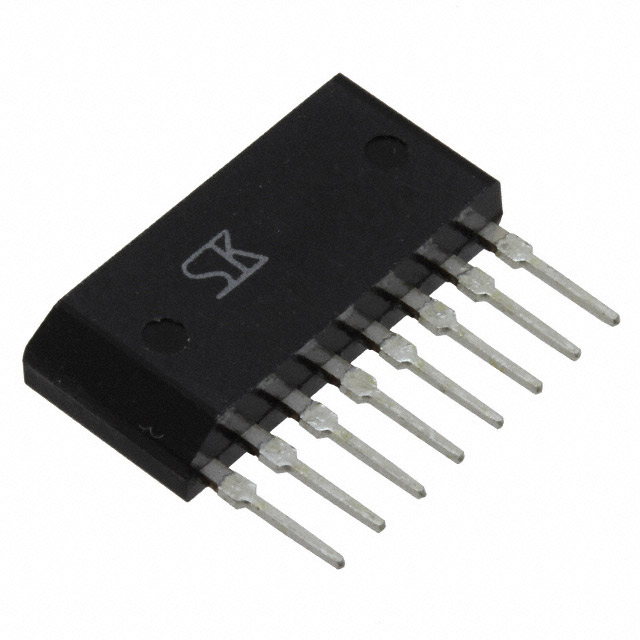

STA302A
ActiveSanken Electric USA Inc.
TRANS 3PNP DARL 50V 4A 8SIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STA302A
ActiveSanken Electric USA Inc.
TRANS 3PNP DARL 50V 4A 8SIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STA302A |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 4 A |
| Current - Collector Cutoff (Max) [Max] | 100 µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 hFE |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Package / Case | 8-SIP |
| Power - Max [Max] | 3 W |
| Supplier Device Package | 8-SIP |
| Transistor Type | 3 PNP Darlington (Emitter Coupled) |
| Vce Saturation (Max) @ Ib, Ic | 2 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.79 | |
| 10 | $ 3.87 | |||
| 100 | $ 2.78 | |||
| 500 | $ 2.32 | |||
| 1000 | $ 2.21 | |||
Description
General part information
STA302 Series
Bipolar (BJT) Transistor Array 3 PNP Darlington (Emitter Coupled) 50V 4A 3W Through Hole 8-SIP
