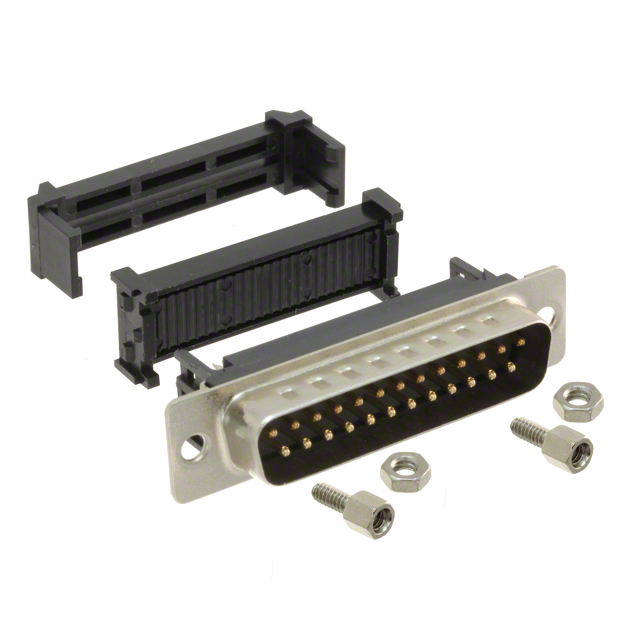

400M0-25-1-004S

Active

CnC Tech, LLC

CONN D-SUB PIN 25 POS IDT RA CABLE MOUNT 25 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN D-SUB PIN 25 POS IDT RA CABLE MOUNT 25 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	400M0-25-1-004S

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Strain Relief, Grounding Indents, Feed Through
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Material Flammability Rating	Number of Rows	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Flange Feature	Contact Material	Features	Shell Material, Finish	Mounting Type	Contact Finish	Dielectric Material	Termination	Contact Type	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
CnC Tech, LLC 400M0-25-1-004S	UL94 V-0	2	D-Sub	-40 °C	105 ░C	Male Pins Plug	Female Screwlock (4-40) Mating Side	Brass	Feed Through Grounding Indents Strain Relief	Nickel Plated Steel	Free Hanging (In-Line)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	IDC Ribbon Cable	Signal	250 VDC	B DB	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
