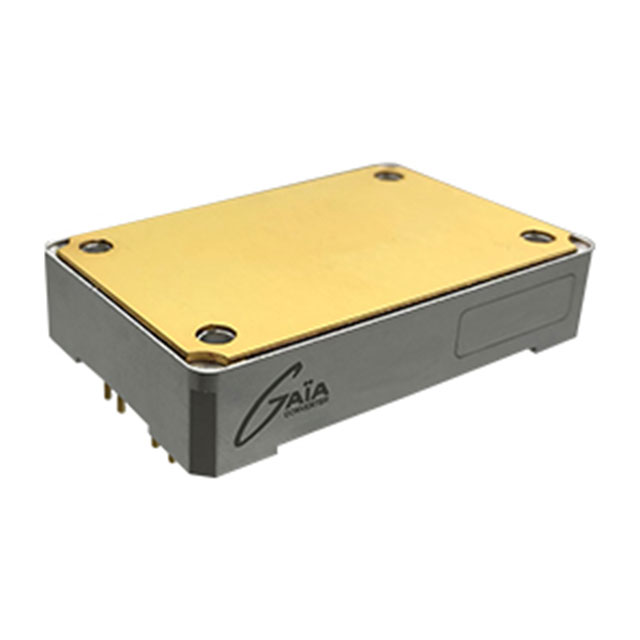

MGDSI-254-H-F
ActiveGaia Converter
DC DC CONVERTER 15V 251W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGDSI-254-H-F
ActiveGaia Converter
DC DC CONVERTER 15V 251W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDSI-254-H-F |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 16.7 A |
| Efficiency | 91 % |
| Features | Baseplate |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 251 W |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [y] | 1.54 " |
| Size / Dimension [y] | 39 mm |
| Size / Dimension [z] | 12.9 mm |
| Size / Dimension [z] | 0.51 in |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2 | $ 393.14 | |
Description
General part information
MGDSI Series
Isolated Module DC DC Converter 1 Output 15V 16.7A 9V - 36V Input
