LZ4-00R308-0000

Active

ams-OSRAM USA INC.

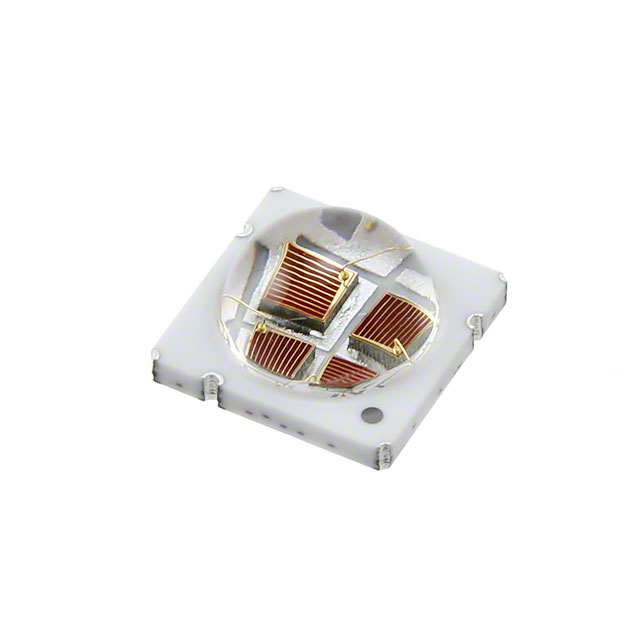

LED LZ4 RED 734NM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LZ4-00R308-0000

Active

ams-OSRAM USA INC.

LED LZ4 RED 734NM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LZ4-00R308-0000

Color	Red
Current - Max [Max]	1 A
Height - Seated (Max) [Max] [z]	0.154 in
Height - Seated (Max) [Max] [z]	3.9 mm
Luminous Flux @ Current/Temperature	2000 mW
Mounting Type	Surface Mount
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	2.8 °C/W
Viewing Angle	95 °
Voltage - Forward (Vf) (Typ)	9 V
Wavelength	734 nm
Wavelength [Max]	745 nm
Wavelength [Min]	723 nm

LZ4-00 Series

Part	Current - Max [Max]	Mounting Type	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Wavelength	Viewing Angle	Supplier Device Package	Color	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Wavelength [Max]	Wavelength [Min]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Current - Max	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Type	Package / Case	Orientation	Operating Temperature	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If [Min]	Radiant Intensity (Ie) Min @ If
ams-OSRAM USA INC. LZ4-00A108-0A45	1 A	Surface Mount	365 lm	7 mm	0.276 in	0.276 "	7 mm	10 V	593 nm	100 °	SMD	Amber	2.8 °C/W	0.154 in	3.9 mm	52 lm/W
ams-OSRAM USA INC. LZ4-00R108-0000	1 A	Surface Mount	456 lm	7 mm	0.276 in	0.276 "	7 mm	10 V	624 nm	100 °	SMD	Red	2.8 °C/W	0.154 in	3.9 mm	65 lm/W	556 lm	356 lm	630 nm	618 nm
ams-OSRAM USA INC. LZ4-00A108-0000	1 A	Surface Mount	365 lm	7 mm	0.276 in	0.276 "	7 mm	10 V	593 nm	100 °	SMD	Amber	2.8 °C/W	0.154 in	3.9 mm	52 lm/W
ams-OSRAM USA INC. LZ4-00MD09-0000		Surface Mount		7 mm	0.276 in	0.276 "	7 mm		457 nm 525 nm 624 nm 6100 K	95 °	SMD	Blue Green Red White	2.8 °C/W	0.154 in	3.9 mm						3.2 V	3.2 V	2.5 V	3.6 V	115 lm	30 lm	190 lm	160 lm	1A Blue 1A Green 1A Red 1A White	85 lm/W	63 lm/W	13 lm/W	66 lm/W
ams-OSRAM USA INC. LZ4-00R508-0000		Surface Mount							920 nm	95 °																								Infrared (IR)	8-SMD No Lead Exposed Pad	Top View	125 ¯C	1 A
ams-OSRAM USA INC. LZ4-00R308-0000	1 A	Surface Mount	2000 mW	7 mm	0.276 in	0.276 "	7 mm	9 V	734 nm	95 °	SMD	Red	2.8 °C/W	0.154 in	3.9 mm				745 nm	723 nm
ams-OSRAM USA INC. LZ4-00G108-0G23	1 A	Surface Mount	657 lm	7 mm	0.276 in	0.276 "	7 mm	13.9 V	525 nm	100 °	SMD	Green	2.8 °C/W	0.154 in	3.9 mm	65 lm/W	868 lm	445 lm
ams-OSRAM USA INC. LZ4-00G108-0000	1 A	Surface Mount	657 lm	7 mm	0.276 in	0.276 "	7 mm	13.9 V	528 nm	100 °	SMD	Green	2.8 °C/W	0.154 in	3.9 mm	65 lm/W	868 lm	445 lm	535 nm	520 nm
ams-OSRAM USA INC. LZ4-00UB0R-00U8		Surface Mount						14.8 V		110 °									410 nm	405 nm														Ultraviolet (UV)		Top View	130 °C	1 A	4800 mW/sr	700 mA
ams-OSRAM USA INC. LZ4-00R608-0000		Surface Mount						12.4 V	850 nm	100 °																								Infrared (IR)	8-SMD No Lead Exposed Pad	Top View	145 °C	1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 12.24
	Digi-Reel®	1	$ 12.24
	Tape & Reel (TR)	250	$ 7.75
		500	$ 7.12
		750	$ 6.86
		1250	$ 6.73

Description

General part information

LZ4-00 Series

LED Lighting Color LZ4 Red 734nm (723nm ~ 745nm) 2828 (7070 Metric)
