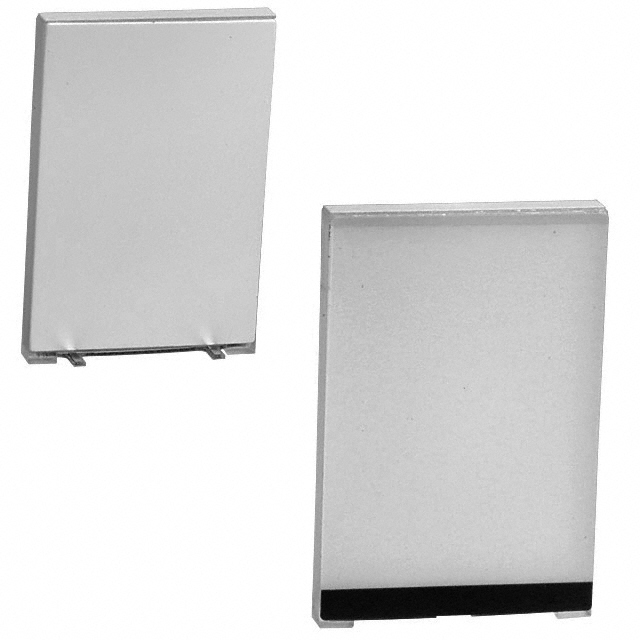

SSB-CEL2417SUGC

Obsolete

Lumex Opto/Components Inc.

LED 30X20MM BACKLIGHT GRN 574NM

Search across all available documentation for this part.

Obsolete

Lumex Opto/Components Inc.

LED 30X20MM BACKLIGHT GRN 574NM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Current - Test	Output	Color	Style	Termination Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	CCT (K)
Lumex Opto/Components Inc. SSB-CEL7172UWW	85 °C	-40 °C	3.5 V	140 mA	230 cd/m²	White	Rectangular	Solder	70.5 mm	3 mm	72 mm
Lumex Opto/Components Inc. SSB-CEL8040UWW	85 °C	-25 °C	3.5 V		140 cd/m²	White	Rectangular	Solder	40 mm	3.3 mm	80 mm
Lumex Opto/Components Inc. SSB-CEL2417SUGC	70 °C	-20 C	2.2 V	40 mA	12 cd/m²	Green	Rectangular	Solder	18.4 mm	3 mm	24 mm	574 nm
Lumex Opto/Components Inc. SSB-CEL2718UWW	80 C	-30 ░C	3.3 V	40 mA		White	Rectangular	PCB Pins	14.78 mm	3 mm	23.97 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED 30X20MM BACKLIGHT GRN 574NM

Technical documentation and resources
