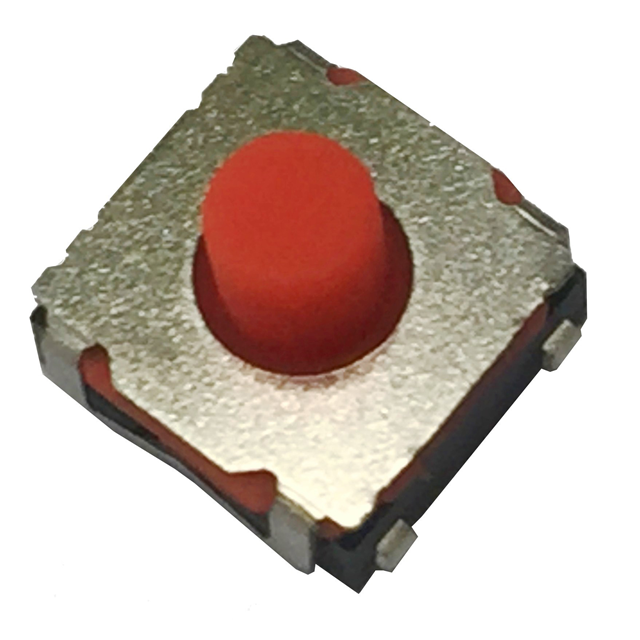

222KJVAAR

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 32V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 32V

Technical Specifications

Parameters and characteristics for this part

Specification	222KJVAAR

Actuator Height off PCB, Vertical	5.2 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Surface Mount
Operating Force	200 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.6 mm
Termination Style	J Lead

Part	Circuit	Actuator Type	Mechanical Life	Actuator Material	Actuator Orientation	Switch Travel	Switch Function	Ingress Protection	Termination Style	Operating Force	Features	Illumination	Actuator Height off PCB, Vertical	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating @ Voltage	Outline [y]	Outline [x]	Switch Travel [custom]
Tusonix a Subsidiary of CTS Electronic Components 222KJVACR	SPST-NO	Standard	300000 Cycles	Silicone Rubber	Top Actuated	0.7 mm	Off-Mom	IP67 - Dust Tight Waterproof	J Lead	360 gf	Tactile Feedback	Non-Illuminated	5.2 mm	85 °C	-40 °C	Surface Mount	0.05 A	6.2 mm	6.2 mm
Tusonix a Subsidiary of CTS Electronic Components 222KJVAAR	SPST-NO	Standard	500000 Cycles	Silicone Rubber	Top Actuated		Off-Mom	IP67 - Dust Tight Waterproof	J Lead	200 gf	Tactile Feedback	Non-Illuminated	5.2 mm	85 °C	-40 °C	Surface Mount	0.05 A	6.2 mm	6.2 mm	0.6 mm
Tusonix a Subsidiary of CTS Electronic Components 222KJVABR	SPST-NO	Standard	5000000 Cycles	Silicone Rubber	Top Actuated	0.5 mm	Off-Mom	IP67 - Dust Tight Waterproof	J Lead	145 gf	Tactile Feedback	Non-Illuminated	5.2 mm	85 °C	-40 °C	Surface Mount	0.05 A	6.2 mm	6.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
