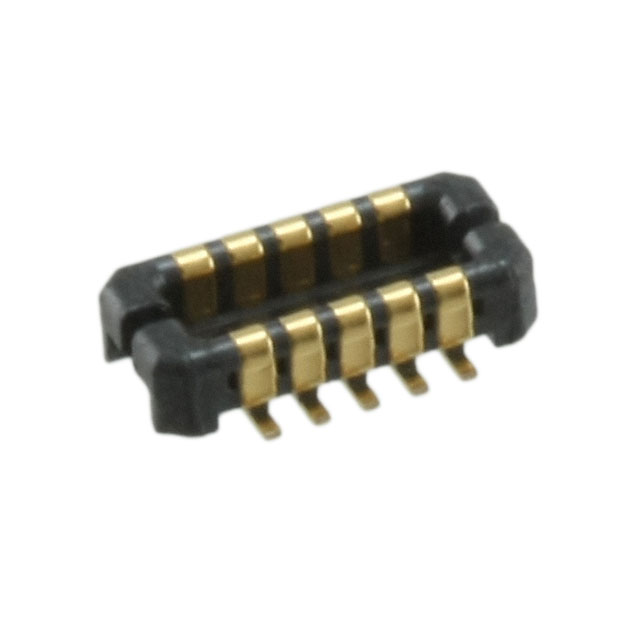

DF37C-10DP-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 10POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HDR 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF37C-10DP-0.4V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights [z]	0.98 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights [z]	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Hirose Electric USA, Inc. DF37C-74DP-0.4V(51)	0.98 mm	Header Outer Shroud Contacts	Surface Mount	0.016 in	0.4 mm	2	0.03 in	0.75 mm	74	Gold
Hirose Electric USA, Inc. DF37C-24DP-0.4V(53)	0.98 mm	Header Outer Shroud Contacts	Surface Mount	0.016 in	0.4 mm	2	0.03 in	0.75 mm	24	Gold
Hirose Electric USA, Inc. DF37C-20DP-0.4V(75)	0.98 mm	Header Outer Shroud Contacts	Surface Mount	0.016 in	0.4 mm	2	0.03 in	0.75 mm	20	Gold	4 Áin	0.1 Ám
Hirose Electric USA, Inc. DF37C-34DP-0.4V(75)
Hirose Electric USA, Inc. DF37C-44DP-0.4V(53)		Header Outer Shroud Contacts	Surface Mount	0.016 in	0.4 mm	2	0.03 in	0.75 mm	44	Gold	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. DF37C-44DP-0.4V(60)
Hirose Electric USA, Inc. DF37C-40DP-0.4V(51)	0.98 mm	Header Outer Shroud Contacts	Surface Mount	0.016 in	0.4 mm	2	0.03 in	0.75 mm	40	Gold
Hirose Electric USA, Inc. DF37C-44DP-0.4V(75)
Hirose Electric USA, Inc. DF37C-10DP-0.4V(51)	0.98 mm	Header Outer Shroud Contacts	Surface Mount	0.016 in	0.4 mm	2	0.03 in	0.75 mm	10	Gold
Hirose Electric USA, Inc. DF37C-16DP-0.4V(75)	0.98 mm	Header Outer Shroud Contacts	Surface Mount	0.016 in	0.4 mm	2	0.03 in	0.75 mm		Gold	4 Áin	0.1 Ám	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
