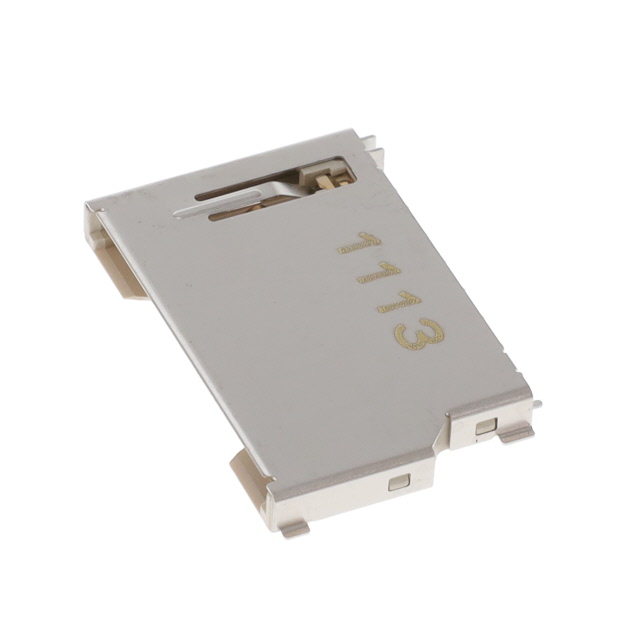

GMC020080HR
NRNDAmphenol ICC (Commercial Products)
2 IN 1 CONNECTOR SD+MMC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GMC020080HR
NRNDAmphenol ICC (Commercial Products)
2 IN 1 CONNECTOR SD+MMC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GMC020080HR |
|---|---|
| Card Type | Combo - MMC, SD |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Switch, Board Guide |
| Height Above Board [z] | 0.11 " |
| Height Above Board [z] | 2.8 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 11 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.76 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.03 | |||
| Digi-Reel® | 1 | $ 1.76 | ||
| 10 | $ 1.34 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.03 | |||
| Tape & Reel (TR) | 10800 | $ 0.67 | ||
Description
General part information
GMC02008 Series
11 (9 + 2) Position Card Connector Combo - MMC, SD Surface Mount, Right Angle Gold
