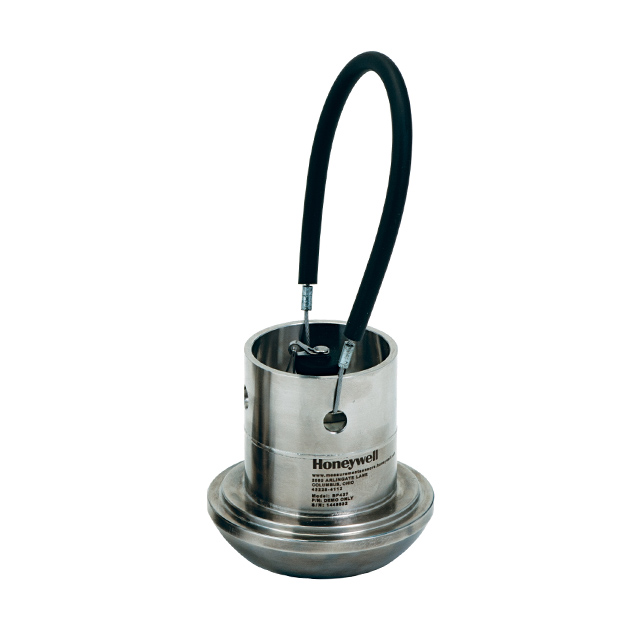

060-P459-01

Active

Honeywell Sensing and Productivity Solutions T&M

HAMMER UNION PRESSURE SENSORS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

HAMMER UNION PRESSURE SENSORS

Technical Specifications

Parameters and characteristics for this part

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Pressure Type	Output [Max]	Output [Min]	Accuracy	Termination Style	Features	Applications	Port Style	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [x]	Operating Pressure [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size [custom]	Port Size [custom]	Operating Pressure	Operating Pressure
Honeywell Sensing and Productivity Solutions T&M 060-P459-02	9000 PSI	62052.82 kPa	Vented Gauge	20 mA	4 mA	0.2 %	Connector	Temperature Compensated	Industrial Automation	Weco® 1502 Hammer Union	Analog Current	125 °C	-40 °C	6000 PSI	41368.54 kPa	9 V	28 V	51 mm	2 "
Honeywell Sensing and Productivity Solutions T&M 060-P459-01	7500 PSI	51710.68 kPa	Vented Gauge	20 mA	4 mA	0.2 %	Connector	Temperature Compensated	Industrial Automation	Weco® 1502 Hammer Union	Analog Current	125 °C	-40 °C			9 V	28 V	51 mm	2 "	34473.79 kPa	5000 PSI
Honeywell Sensing and Productivity Solutions T&M 060-P459-03	15000 PSI	103421.36 kPa	Vented Gauge	20 mA	4 mA	0.2 %	Connector	Temperature Compensated	Industrial Automation	Weco® 1502 Hammer Union	Analog Current	125 °C	-40 °C	10000 PSI	68947.57 kPa	9 V	28 V	51 mm	2 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

HAMMER UNION PRESSURE SENSORS

Technical documentation and resources

No documents available
