BU-L0000-500TIN
ActiveMueller Electric Co

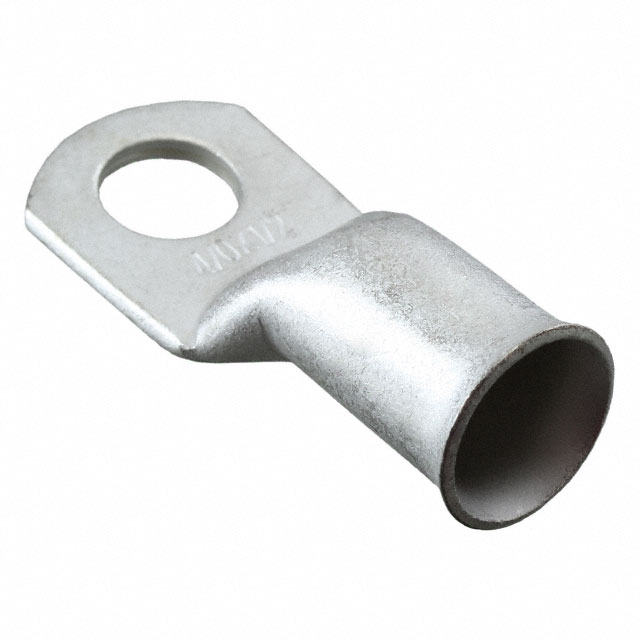

LUG TERMINAL, CRIMP, 0000 AWG, COMPRESSION LUG, M12
Deep-Dive with AI
Search across all available documentation for this part.
BU-L0000-500TIN
ActiveMueller Electric Co
LUG TERMINAL, CRIMP, 0000 AWG, COMPRESSION LUG, M12
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-L0000-500TIN |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 59.69 mm |
| Length - Overall [x] | 2.35 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 1/2 Stud |
| Terminal Type | Circular Tubular (Battery Lugs) |
| Termination | Crimp |
| Thickness | 0.105 in |
| Thickness | 2.67 mm |
| Width - Outer Edges [y] | 26.16 mm |
| Width - Outer Edges [y] | 1.03 in |
| Wire Gauge | 4 aught AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.70 | |
| 10 | $ 3.83 | |||
| 100 | $ 3.65 | |||
| 500 | $ 3.53 | |||
| 1000 | $ 3.48 | |||
Description
General part information
BU-L000 Series
Ring Terminal Connector 1/2 Stud Circular Tubular (Battery Lugs) 4/0 AWG Crimp
