M83513/10-C01NN
ActiveITT Cannon, LLC

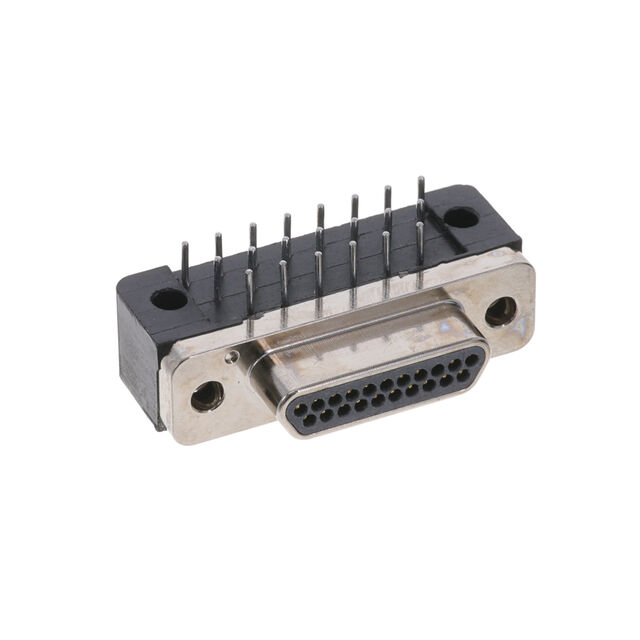

D SUB CONNECTOR, MICRO D, PLUG, M83513 MDM SERIES, 21 CONTACTS, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
M83513/10-C01NN
ActiveITT Cannon, LLC
D SUB CONNECTOR, MICRO D, PLUG, M83513 MDM SERIES, 21 CONTACTS, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/10-C01NN |
|---|---|
| Backset Spacing | 3.3 mm |
| Backset Spacing | 0.13 in |
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 21 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
| Voltage Rating | 600 V |
M83513/10 Series
| Part | 2nd Connector | Contact Finish Thickness | Contact Finish Thickness | Type | Contact Finish | 1st Connector | Shielding | Contact Type | Number of Rows | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Dielectric Material | Contact Material | Flange Feature | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Shell Material, Finish | Voltage Rating | Connector Type | Termination | Current Rating (Amps) | Backset Spacing | Backset Spacing | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Individual Wire Leads | 50 µin | 1.27 µm | D-Type Micro-D | Gold | Plug Male Pins | Unshielded | ||||||||||||||||||||
ITT Cannon, LLC | Gold | Signal | 2 | 21 | 0.043 | 0.05 | Liquid Crystal Polymer (LCP) | Copper Alloy | Housing/Shell (Unthreaded) | Panel Mount Right Angle Through Hole | -55 °C | 125 °C | D-Type Micro-D | Aluminum Electroless Nickel Plated | 600 V | Male Pins Plug | Solder | 3 A | 3.3 mm | 0.13 in | Metal | ||||||
ITT Cannon, LLC | Individual Wire Leads | 50 µin | 1.27 µm | D-Type Micro-D | Gold | Plug Male Pins | Unshielded | 21 | |||||||||||||||||||
ITT Cannon, LLC | Individual Wire Leads | 50 µin | 1.27 µm | D-Type Micro-D | Gold | Plug Male Pins | Unshielded | 37 | |||||||||||||||||||
ITT Cannon, LLC | Individual Wire Leads | 50 µin | 1.27 µm | D-Type Micro-D | Gold | Plug Male Pins | Unshielded | ||||||||||||||||||||
ITT Cannon, LLC | Individual Wire Leads | 50 µin | 1.27 µm | D-Type Micro-D | Gold | Plug Male Pins | Unshielded | 15 | |||||||||||||||||||
ITT Cannon, LLC | Individual Wire Leads | 50 µin | 1.27 µm | D-Type Micro-D | Gold | Plug Male Pins | Unshielded | 31 | |||||||||||||||||||
ITT Cannon, LLC | Individual Wire Leads | 50 µin | 1.27 µm | D-Type Micro-D | Gold | Plug Male Pins | Unshielded | 9 | |||||||||||||||||||
ITT Cannon, LLC | Individual Wire Leads | 50 µin | 1.27 µm | D-Type Micro-D | Gold | Plug Male Pins | Unshielded | 9 | |||||||||||||||||||
ITT Cannon, LLC | 50 µin | 1.27 µm | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M83513/10 Series
21 Position D-Type, Micro-D Plug, Male Pins Connector
Documents
Technical documentation and resources
