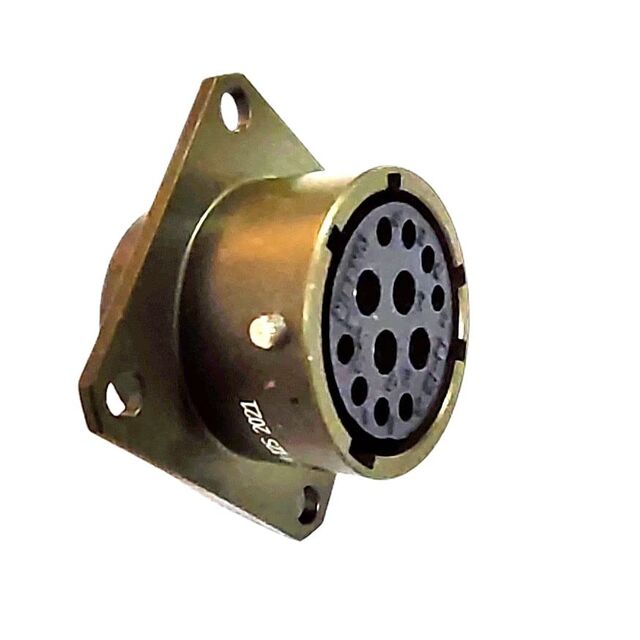

MS27466T17B6S

Active

Souriau-Sunbank by Eaton

RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS27466T17B6S

Active

Souriau-Sunbank by Eaton

RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS27466T17B6S

Applications	Aerospace, Aviation, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Material	Aluminum
Shell Size - Insert	17-6
Termination	Crimp
Voltage Rating	500 VAC

MS27466T17B Series

Part	Shell Finish	Contact Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Qualification	Housing Color	Shielding	Contact Size	Fastening Type	Note	Grade	Number of Positions	Shell Material	Mounting Feature	Orientation	Insert Material	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Contact Finish - Mating	Termination	Current Rating (Amps)	Primary Material	Color	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Shell Size - Insert	Contact Size	Shell Size, MIL	Voltage Rating	Material Flammability Rating	Accessory Type	Shell Size - Insert	Features	For Use With/Related Products
Souriau-Sunbank by Eaton MS27466T17B35PB-LC	Cadmium	Crimp	For Male Pins	-65 ░C	347 °F	Circular	MIL-DTL-38999 Series I	Olive	Unshielded	22D	Bayonet Lock	Contacts Not Included	Military	55 positions	Aluminum Alloy	Flange	B	Thermoplastic	Receptacle Housing	17	35	Environment Resistant
Souriau-Sunbank by Eaton MS27466T17B26P	Olive Drab Cadmium			-65 ░C	347 °F		MIL-DTL-38999 Series I				Bayonet Lock		Military	26	Aluminum Alloy	Flange	N	Thermoplastic	Male Pins Receptacle	17	26	Environment Resistant	Gold	Crimp	7.5 A	Metal	Olive Drab	Aviation Communication Systems Marine Medical Military	1.27 µm	50 µin	Copper Alloy
Souriau-Sunbank by Eaton MS27466T17B8PB-LC	Cadmium	Crimp	For Male Pins	-65 ░C	347 °F	Circular	MIL-DTL-38999 Series I	Olive	Unshielded		Bayonet Lock	Contacts Not Included	Military	8	Aluminum Alloy	Flange	B	Thermoplastic	Receptacle Housing			Environment Resistant										17-8	16
Souriau-Sunbank by Eaton MS27466T17B26SB	Olive Green Cadmium			-65 ░C	347 °F		MIL-DTL-38999 Series I		Shielded		Bayonet Lock		Military	26	Aluminum Alloy	Flange	B	Thermoplastic	Receptacle Female Sockets	17	26	Environment Resistant	Gold	Crimp	7.5 A	Metal	Olive Green	Aviation Communication Systems Marine Medical Military	1.27 µm	50 µin	Copper Alloy			E
Souriau-Sunbank by Eaton MS27466T17B8AB	Cadmium	Crimp	For Male Pins	-65 ░C	347 °F	Circular	MIL-DTL-38999 Series I	Olive	Unshielded		Bayonet Lock	Contacts Not Included	Military	8	Aluminum Alloy	Flange	B	Thermoplastic	Receptacle Housing			Environment Resistant										17-8	16	E
Souriau-Sunbank by Eaton MS27466T17B6S				-65 ░C	347 °F		MIL-DTL-38999 Series I				Bayonet Lock		Military	6	Aluminum	Flange	N	Thermoplastic	Receptacle Female Sockets			Environment Resistant	Gold	Crimp	23 A	Metal	Olive Drab	Aerospace Aviation Military	1.27 µm	50 µin	Copper Alloy	17-6			500 VAC	UL94 V-0
Souriau-Sunbank by Eaton MS27466T17B35AB	Cadmium	Crimp	For Male Pins	-65 ░C	347 °F	Circular	MIL-DTL-38999 Series I	Olive	Unshielded	22D	Bayonet Lock	Contacts Not Included	Military	55 positions	Aluminum Alloy	Flange	B	Thermoplastic	Receptacle Housing	17	35	Environment Resistant												E
Souriau-Sunbank by Eaton MS27466T17B8BB	Cadmium	Crimp	For Female Sockets	-65 ░C	347 °F	Circular	MIL-DTL-38999 Series I	Olive	Unshielded		Bayonet Lock	Contacts Not Included	Military	8	Aluminum Alloy	Flange	B	Thermoplastic	Receptacle Housing			Environment Resistant										17-8	16	E
Souriau-Sunbank by Eaton MS27466T17B99PA	Olive Drab Cadmium			-65 ░C	347 °F		MIL-DTL-38999 Series I				Bayonet Lock		Military	23	Aluminum Alloy	Flange	A	Thermoplastic	Male Pins Receptacle	17	99	Environment Resistant	Gold	Crimp	7.5 A 13 A	Metal	Olive Drab	Aviation Communication Systems Marine Medical Military	1.27 µm	50 µin	Copper Alloy
Souriau-Sunbank by Eaton MS27466T17B6PAL							MIL-DTL-38999 Series I						Military																								Dummy Receptacle	17	Bayonet Lock	38999 Series 1 Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 307.32
		10	$ 284.78
		25	$ 274.54
	Box	2	$ 93.00
		10	$ 85.56
		50	$ 78.72
		100	$ 72.42
		500	$ 66.62

Description

General part information

MS27466T17B Series

6 Position Circular Connector Receptacle, Female Sockets Crimp
