171-037-113R911

Active

MH Connectors

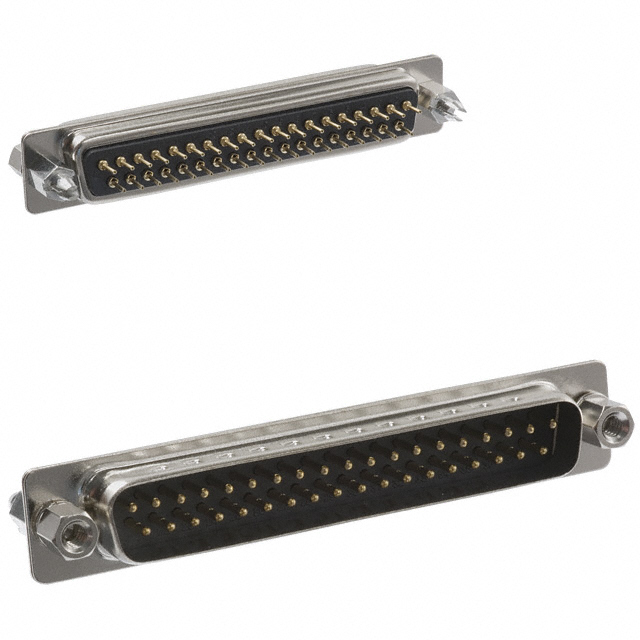

D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, SOLDER, DC, 171 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN 3D Product Image EN +3

171-037-113R911

Active

MH Connectors

D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, SOLDER, DC, 171 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDrawing EN 3D Product Image EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	171-037-113R911

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Grounding Indents, Board Lock
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	37
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

171-037 Series

Part	Flange Feature	Contact Finish Thickness	Connector Style	Contact Form	Shell Size, Connector Layout	Number of Positions	Contact Finish	Mounting Type	Number of Rows	Contact Type	Color	Features	Contact Material	Current Rating (Amps)	Dielectric Material	Shell Material, Finish	Connector Type	Material Flammability Rating	Termination	Voltage Rating	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 171-037-113R911	Board Side (4-40) Mating Side Female Screwlock (4-40)	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black	Board Lock Grounding Indents	Brass	5 A	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Male Pins Plug	UL94 V-0	Solder
MH Connectors 171-037-213R051	4-40 Board Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black		Brass	5 A	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Receptacle Female Sockets	UL94 V-0	Solder	500 V
MH Connectors 171-037-103L021	Cable Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black	Grounding Indents	Copper Alloy	5 A	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Male Pins Plug	UL94 V-0			20 AWG	28 AWG
MH Connectors 171-037-102L001	Housing/Shell (Unthreaded)	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black	Grounding Indents	Copper Alloy	5 A	Polybutylene Terephthalate (PBT) Glass Filled		Male Pins Plug	UL94 V-0			20 AWG	28 AWG
MH Connectors 171-037-201L031	4-40	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black			5 A	Polybutylene Terephthalate (PBT)	Steel Yellow Chromate Plated Zinc	Receptacle Female Sockets	UL94 V-0			20 AWG	28 AWG
MH Connectors 171-037-212-011	4-40 Board Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black			5 A	Polybutylene Terephthalate (PBT)		Receptacle Female Sockets	UL94 V-0	Solder
MH Connectors 171-037-102-031	4-40	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black	Grounding Indents		5 A	Polybutylene Terephthalate (PBT)		Male Pins Plug	UL94 V-0			20 AWG	28 AWG
MH Connectors 171-037-112-001	Housing/Shell (Unthreaded)	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black	Grounding Indents		5 A	Polybutylene Terephthalate (PBT)		Male Pins Plug	UL94 V-0	Solder
MH Connectors 171-037-113R051	4-40 Board Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold	Panel Mount Through Hole	2	Signal	Black	Board Lock Grounding Indents	Brass	5 A	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Male Pins Plug	UL94 V-0	Solder	500 V
MH Connectors 171-037-102-011	Cable Side	Flash	D-Sub	Stamped	4 (DC C)	37	Gold		2	Signal	Black	Grounding Indents		5 A	Polybutylene Terephthalate (PBT)		Male Pins Plug	UL94 V-0			20 AWG	28 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.85
		10	$ 5.82
		30	$ 5.38
		60	$ 5.13
		120	$ 4.88
		270	$ 4.61
		510	$ 4.41
		1020	$ 4.20
		2520	$ 3.94
Newark	Each	100	$ 5.00
		250	$ 4.74
		500	$ 4.45

Description

General part information

171-037 Series

The 171 series high performance Dip Solder D-sub Connectors with stamped contacts. It has brass male pins contact, phosphor bronze female pins contact with gold flash on entire contact-plating, glass-filled thermoplastic insulator and steel, nickel plated shell.
