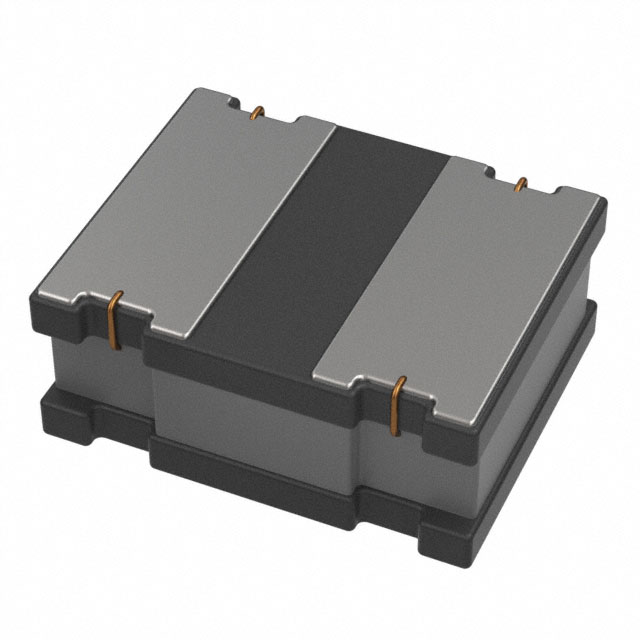

SDEM25201B-2R2MS

Active

Delta Electronics/Cyntec

FIXED IND 2.2UH 1.85A 0.117OHM

Deep-Dive with AI

Search across all available documentation for this part.

SDEM25201B-2R2MS

Active

Delta Electronics/Cyntec

FIXED IND 2.2UH 1.85A 0.117OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDEM25201B-2R2MS

Current - Saturation (Isat)	2.3 A
Current Rating (Amps)	1.85 A
DC Resistance (DCR) [Max]	117 mOhm
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Inductance	2.2 µH
Inductance Frequency - Test	1 MHz
Material - Core	Metal
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1008
Shielding	Shielded
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	2520
Tolerance	20 %

SDEM25201B Series

Part	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Supplier Device Package	DC Resistance (DCR) [Max]	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Material - Core	Current - Saturation (Isat)
Delta Electronics/Cyntec SDEM25201B-3R3MS	Surface Mount	20 %	-55 °C	125 °C	1 MHz	3.3 µH	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	188 mOhm	Shielded	1.2 mm	0.047 in	1.45 A	Metal	2 A
Delta Electronics/Cyntec SDEM25201B-100MS	Surface Mount	20 %	-55 °C	125 °C	1 MHz	10 µH	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	450 mOhm	Shielded	1.2 mm	0.047 in	900 mA	Metal	1 A
Delta Electronics/Cyntec SDEM25201B-1R0MS	Surface Mount	20 %	-55 °C	125 °C	1 MHz	1 µH	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	52.5 mOhm	Shielded	1.2 mm	0.047 in	3.35 A	Metal	3.8 A
Delta Electronics/Cyntec SDEM25201B-2R2MS	Surface Mount	20 %	-55 °C	125 °C	1 MHz	2.2 µH	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	117 mOhm	Shielded	1.2 mm	0.047 in	1.85 A	Metal	2.3 A
Delta Electronics/Cyntec SDEM25201B-4R7MS	Surface Mount	20 %	-55 °C	125 °C	1 MHz	4.7 ÁH	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	240 mOhm	Shielded	1.2 mm	0.047 in	1.45 A	Metal	1.65 A
Delta Electronics/Cyntec SDEM25201B-150MS	Surface Mount	20 %	-55 °C	125 °C	1 MHz	15 µH	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	768 mOhm	Shielded	1.2 mm	0.047 in	0.63 A	Metal	800 mA
Delta Electronics/Cyntec SDEM25201B-R47MS	Surface Mount	20 %	-55 °C	125 °C	1 MHz	470 nH	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	32 mOhm	Shielded	1.2 mm	0.047 in	4 A	Metal	5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.21
		10	$ 0.17
		25	$ 0.15
		50	$ 0.14
		100	$ 0.12
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
	Digi-Reel®	1	$ 0.21
		10	$ 0.17
		25	$ 0.15
		50	$ 0.14
		100	$ 0.12
		250	$ 0.12
		500	$ 0.11
		1000	$ 0.09
	Tape & Reel (TR)	2000	$ 0.08
		4000	$ 0.07
		6000	$ 0.07
		10000	$ 0.06
		14000	$ 0.06

Description

General part information

SDEM25201B Series

2.2 µH Shielded Inductor 1.85 A 117mOhm Max 1008 (2520 Metric)
