842-114-556-201
ActiveEDAC Inc.

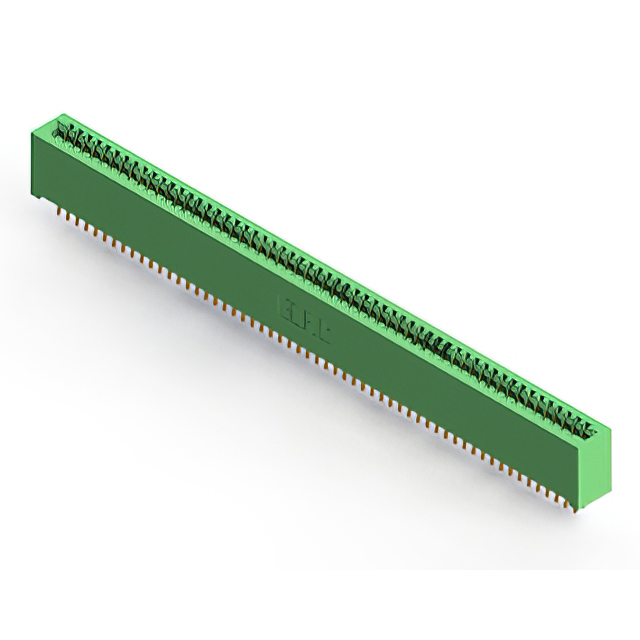

CONN EDGE DUAL FML 114POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-114-556-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 114POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-114-556-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 114 |
| Number of Positions/Bay/Row [custom] | 57 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-114 Series
| Part | Number of Positions | Contact Type | Contact Material | Pitch [x] | Pitch [x] | Termination Rows | Gender | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Color | Card Type | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Termination | Contact Finish | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder Eyelet(s) | Gold | 2 | ||||
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Gold | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Solder | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Solder | Gold | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Card Extender |
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Solder | Gold | 2 | ||||
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Solder | Gold | 2 | Card Extender | |||
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Gold | 2 | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Wire Wrap | Gold | 2 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | |
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Gold | 2 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |
EDAC Inc. | 114 | Cantilever | Copper Alloy | 2.54 mm | 0.1 in | 2 | Female | Dual | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 57 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Solder | Gold | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-114 Series
114 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
