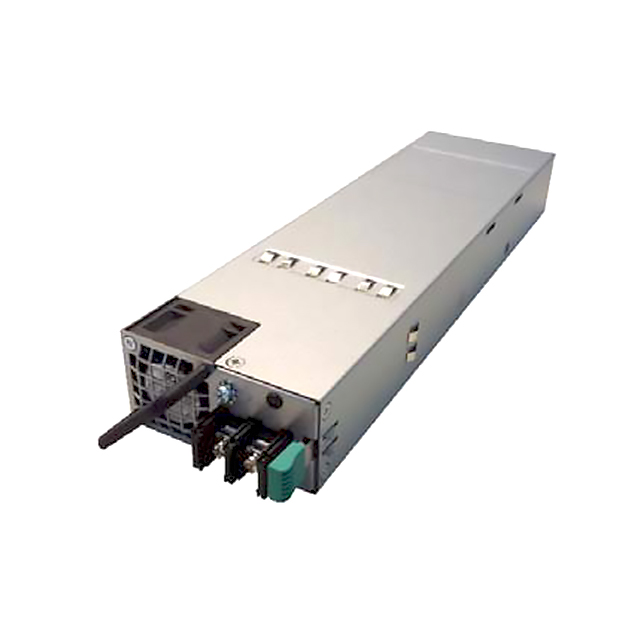

D1U3CS-D-1600-12-HC4EC

Active

Murata Power Solutions Inc.

DC/DC CONVERTER 12V 1600W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC/DC CONVERTER 12V 1600W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Power (Watts)	Approval Agency	Efficiency
Murata Power Solutions Inc. D1U3CS-D-850-12-HA3C	1	-40 V	Front End	12 V	ITE (Commercial)	1.57 "	81.3 mm	279.4 mm	39.9 mm	11 in	3.2 in	-10 °C	50 °C	69.1 A	-72 V	Rack Mount	829 W	CB cCSAus CE TUV	87 %
Murata Power Solutions Inc. D1U3CS-D-1600-12-HC4EC	1	-40 V	Front End	12 V	ITE (Commercial)	1.57 "	81.3 mm	279.4 mm	39.9 mm	11 in	3.2 in			133 A	-72 V	Rack Mount	1600 W	CB cCSAus CE	93 %
Murata Power Solutions Inc. D1U3CS-D-850-12-HC4C	1	-40 V	Front End	12 V	ITE (Commercial)	1.57 "	81.3 mm	279.4 mm	39.9 mm	11 in	3.2 in	-10 °C	50 °C	69.1 A	-72 V	Rack Mount		CB cCSAus CE TUV	87 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 662.75

General part information

Front End DC DC Converter 1 Output 12V 133A -72V Input
