125-0901-811

Active

Cinch Connectivity Solutions Johnson

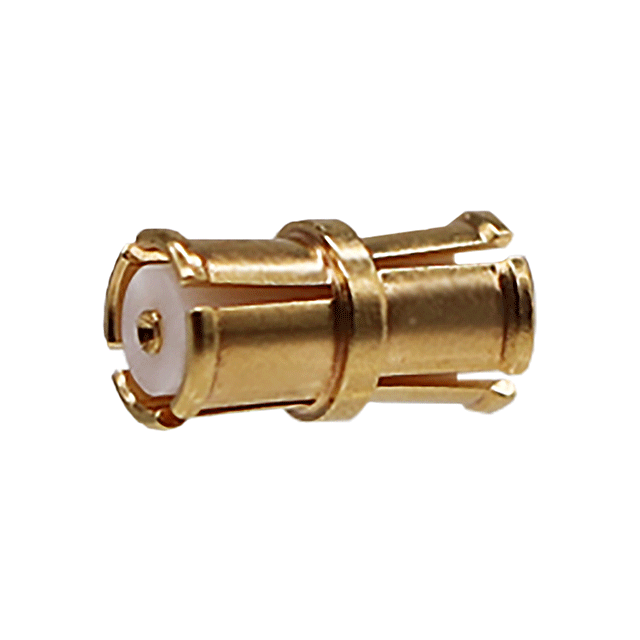

SMPM BULLET ADAPTER .210" LENGTH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMPM BULLET ADAPTER .210" LENGTH

Technical Specifications

Parameters and characteristics for this part

Specification	125-0901-811

Adapter Series	SMPM to SMPM
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMPM Jack
Convert To (Adapter End)	Female Socket, SMPM Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Gender	Mounting Type	Center Contact Material	Body Material	Adapter Type	Adapter Series	Impedance	Center Contact Plating	Frequency - Max [Max]	Style	Body Finish	Conversion Type	Dielectric Material	Fastening Type	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)
Cinch Connectivity Solutions Johnson 125-0901-811	Female to Female	Free Hanging (In-Line)	Beryllium Copper	Beryllium Copper	Jack to Jack	SMPM to SMPM	50 Ohms	Gold	65 GHz	Straight	Gold	Same Series	Polytetrafluoroethylene (PTFE)	Snap-On	Female Socket SMPM Jack	-65 ░C	165 °C	Female Socket SMPM Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMPM Jack, Female Socket To SMPM Jack, Female Socket 50 Ohms
