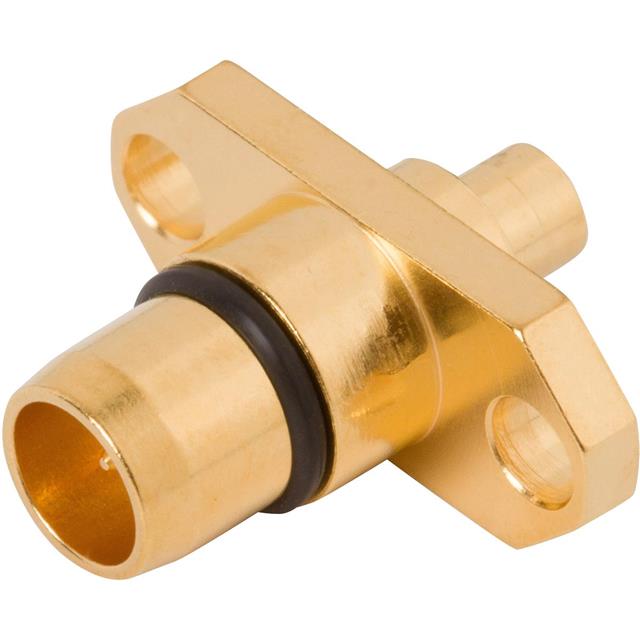

1711-60008

Active

Amphenol SV Microwave

CONN BMA PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN BMA PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1711-60008

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	5000
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder

Part	Body Material	Center Contact Material	Contact Termination	Body Finish	Connector Style	Dielectric Material	Housing Color	Mounting Type	Fastening Type	Shield Termination	Mating Cycles	Number of Ports	Connector Type	Impedance	Center Contact Plating	Frequency - Max [Max]	Cable Group	Cable Group	Mounting Feature
Amphenol SV Microwave 1711-60044	Stainless Steel	Beryllium Copper	Solder	Gold	BMA	Polytetrafluoroethylene (PTFE)	Gold	Board Edge End Launch	Snap-On	Solder	5000	1	Male Pin Plug	50 Ohms	Gold	22 GHz
Amphenol SV Microwave 1711-60008	Stainless Steel	Beryllium Copper	Solder	Gold	BMA	Polytetrafluoroethylene (PTFE)	Gold		Snap-On	Solder	5000	1	Male Pin Plug	50 Ohms	Gold	22 GHz	0.085 in	RG-405	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.72

General part information

BMA Connector Plug, Male Pin 50 Ohms Panel Mount Solder
