T4110001041-000
ActiveTE Connectivity Raychem Cable Protection

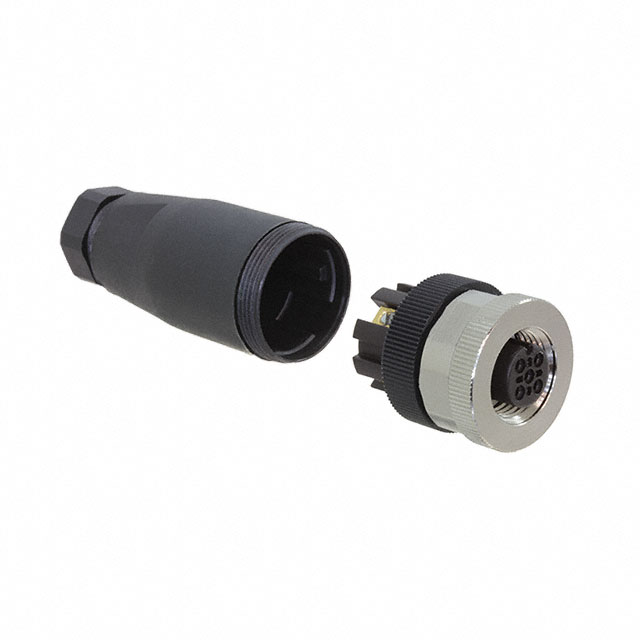

SENSOR CONNECTOR, PG7/4-6MM, M12, FEMALE, 4 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
T4110001041-000
ActiveTE Connectivity Raychem Cable Protection
SENSOR CONNECTOR, PG7/4-6MM, M12, FEMALE, 4 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4110001041-000 |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) |
| Cable Opening [diameter] | 6 mm, 4 mm |
| Cable Opening [diameter] | 0.236 in, 0.157 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Zinc Alloy |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 VDC |
T41100 Series
| Part | Backshell Material, Plating | Voltage Rating | Contact Finish - Mating | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Applications | Color | Number of Positions | Current Rating (Amps) | Orientation | Shell Size - Insert | Shell Material | Shielding | Contact Material | Connector Type | Mounting Type | Primary Material | Ingress Protection | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Features | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | 30 VDC | Silver | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | Black Silver | 8 | 2 A | A | M12-8 | Brass | Unshielded | Bronze | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 2.03 µm | 80 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | ||
TE Connectivity Raychem Cable Protection | Brass Nickel | 250 VDC | Gold | Industrial | Silver | 2 | 4 A | A | M12-2 | Brass | Shielded | Zinc Alloy | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 0.076 µm | 3 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | 4 mm 6 mm | 0.157 in 0.236 in | ||||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | 250 VDC | Silver | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | Black Silver | 4 A | A | M12-3 | Brass | Unshielded | Bronze | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 2.03 µm | 80 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | |||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | 30 VDC | Gold | Industrial | Black Silver | 8 | 2 A | A | M12-8 | Brass | Unshielded | Zinc Alloy | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 0.076 µm | 3 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | 4 mm 6 mm | 0.157 in 0.236 in | ||||
TE Connectivity Raychem Cable Protection | Brass Nickel | 30 VDC | Gold | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | Silver | 8 | 2 A | A | M12-8 | Brass | Shielded | Zinc Alloy | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 0.076 µm | 3 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | ||
TE Connectivity Raychem Cable Protection | Brass Nickel | 30 VDC | Gold | Industrial | Silver | 8 | 2 A | A | M12-8 | Brass | Shielded | Zinc Alloy | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 0.076 µm | 3 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | 4 mm 6 mm | 0.157 in 0.236 in | ||||
TE Connectivity Raychem Cable Protection | Brass Nickel | 250 VDC | Gold | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | Silver | 2 | 4 A | A | M12-2 | Brass | Shielded | Zinc Alloy | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 0.076 µm | 3 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | ||
TE Connectivity Raychem Cable Protection | Brass Nickel | 250 VDC | Gold | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | Silver | 4 | 4 A | A | M12-4 | Brass | Shielded | Zinc Alloy | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 0.076 µm | 3 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | ||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | 250 VDC | Gold | Industrial | Black Silver | 4 | 4 A | A | M12-4 | Brass | Unshielded | Zinc Alloy | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 0.076 µm | 3 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut | 4 mm 6 mm | 0.157 in 0.236 in | ||||
TE Connectivity Raychem Cable Protection | Glass Filled Polybutylene Terephthalate (PBT) | 60 VDC | Silver | 8 mm | 6 mm | 0.315 in | 0.236 in | Industrial | Black Silver | 4 A | A | M12-5 | Brass | Unshielded | Bronze | Female Sockets Plug | Free Hanging (In-Line) | Metal | IP67 - Dust Tight Waterproof | Nylon Polyamide (PA) | 2.03 µm | 80 µin | Screw | Nickel | 85 °C | -40 °C | Backshell Coupling Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
T41100 Series
The T4110001041-000 from TE Connectivity is aM12, straight female, A code, PG7, standard circular connector. This connector has plastic shell type with 20 shell size, PBT shell and PA66+GF25 insulation material.
