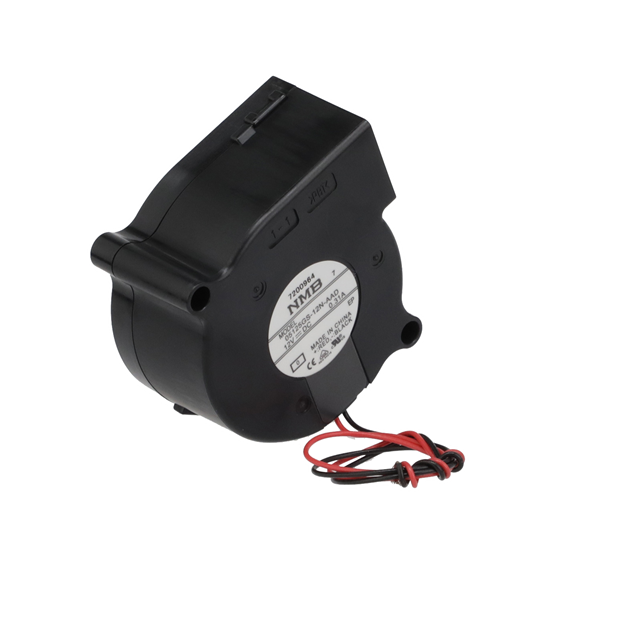

05125GS-12N-AAD-0
ActiveNMB TECHNOLOGIES
FAN BLOWER 51X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
05125GS-12N-AAD-0
ActiveNMB TECHNOLOGIES
FAN BLOWER 51X25MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 05125GS-12N-AAD-0 |
|---|---|
| Air Flow | 0.199 mł/min |
| Air Flow | 7.1 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.2 A |
| Fan Type | Blower |
| Features | Auto Restart |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 39 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.4 W |
| RPM | 5700 RPM |
| Size / Dimension | Square/Rounded |
| Size / Dimension [x] | 51 mm |
| Size / Dimension [z] | 51 mm |
| Static Pressure | 169.4 Pa |
| Static Pressure | 0.68 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.28 | |
| 10 | $ 11.72 | |||
| 25 | $ 11.03 | |||
| 50 | $ 10.61 | |||
| 180 | $ 9.77 | |||
| 360 | $ 9.14 | |||
| 540 | $ 9.00 | |||
Description
General part information
05125GS Series
Fan Blower 12VDC Square/Rounded - 51mm L x 51mm H Ball 7.1 CFM (0.199m³/min) 2 Wire Leads
