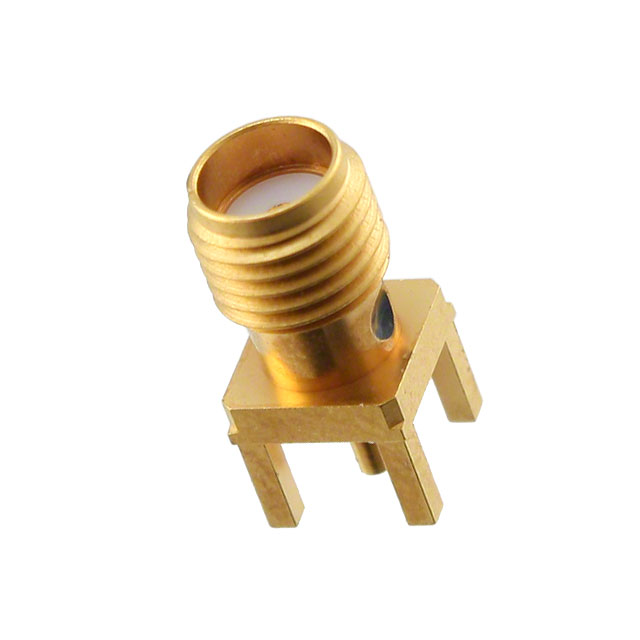

050-651-0000310

Active

ITT Cannon, LLC

CONN SMA RCPT STR 50 OHM PCB

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN SMA RCPT STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	050-651-0000310

Body Finish	Gold
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mating Cycles	Center Contact Material	Frequency - Max [Max]	Impedance	Dielectric Material	Contact Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Number of Ports	Shield Termination	Housing Color	Center Contact Plating	Body Finish
ITT Cannon, LLC 050-651-0000310	500	Beryllium Copper	18 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Solder	Through Hole	-65 ░C	165 °C	Female Socket Receptacle	SMA	1	Solder	Gold	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Through Hole Solder
