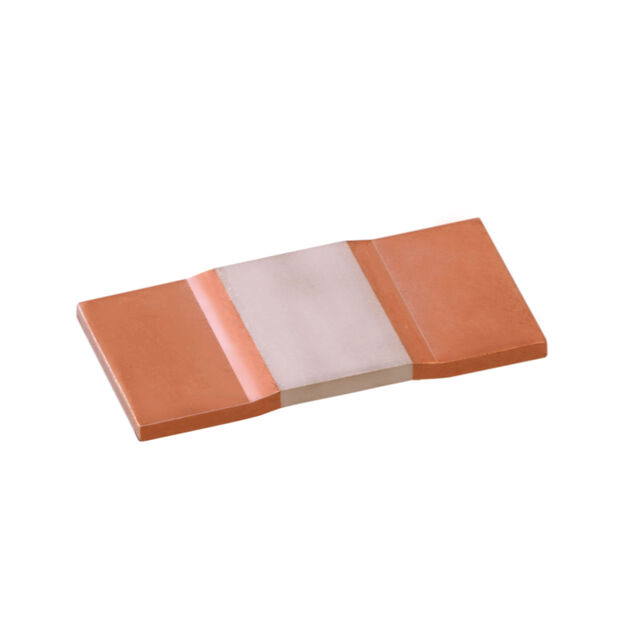

BVE-Z-R0001-5.0

Active

Isabellenhuette USA

RESISTOR - ISA-WELD SHUNT, 0.000

Search across all available documentation for this part.

Active

Isabellenhuette USA

RESISTOR - ISA-WELD SHUNT, 0.000

Technical Specifications

Parameters and characteristics for this part

Specification	BVE-Z-R0001-5.0

Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max] [z]	2.11 mm
Height - Seated (Max) [Max] [z]	0.083 "
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Power (Watts)	15 W
Ratings	AEC-Q200
Resistance	0.1 mOhms
Size / Dimension [x]	0.591 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	7.75 mm
Size / Dimension [y]	0.305 in
Supplier Device Package	5930
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

Part	Supplier Device Package	Resistance	Features	Ratings	Package / Case	Number of Terminations	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Isabellenhuette USA BVE-Z-R0001-5.0	5930	0.1 mOhms	Automotive AEC-Q200 Current Sense	AEC-Q200	Nonstandard	2	170 °C	-55 °C	200 ppm/°C	0.591 in	7.75 mm	0.305 in	15 mm	15 W	5 %	2.11 mm	0.083 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 1.90
