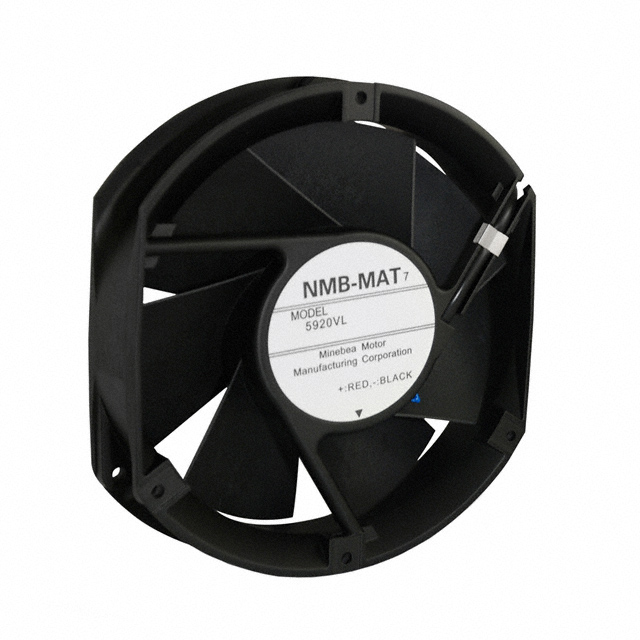

15050VA-48P-EA-00

Active

NMB TECHNOLOGIES

FAN AXIAL 172X50.8MM 48VDC WIRE

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL 172X50.8MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Weight	Weight	Fan Type	Bearing Type	Noise	Current Rating (Amps)	Air Flow	Air Flow	Power (Watts)	Lifetime @ Temp.	Material - Frame	Width [y]	Voltage - Rated [custom]	Termination	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Static Pressure	Static Pressure	Ingress Protection	Weight
NMB TECHNOLOGIES 15050VA-48P-EA-00	UL VDE	816.5 g	1.8 lbs	Tubeaxial	Ball	63 dB	0.52 A	7.93 mł/min	283.1 CFM	25 W	100000 Hrs	Aluminum	2 "	48 VDC	2 Wire Leads	Rectangular/Rounded	150 mm	172 mm	36 VDC	56 VDC	Plastic	70 °C	70 °C	-10 °C	-10 °C	3750 RPM	210.7 Pa	0.846 in H2O
NMB TECHNOLOGIES 15050VA-48M-EA-YY		816.5 g	1.8 lbs	Tubeaxial	Ball	51 dB(A)	0.28 A	5.45 m³/min	194.5 CFM	13.4 W	100000 Hrs	Aluminum	2 "	48 VDC	2 Wire Leads	Rectangular/Rounded	150 mm	172 mm	36 VDC	56 VDC	Plastic	70 °C	70 °C	-10 °C	-10 °C	2550 RPM	106.6 Pa	0.428 in H2O
NMB TECHNOLOGIES 15050VA-48R-GA-00			861.8 g	Tubeaxial	Ball	68 dB	900 mA			43.2 W		Aluminum	2 "	48 VDC	2 Wire Leads	Rectangular/Rounded	150 mm	172.7 mm	38 VDC	52.8 VDC	Plastic	70 °C	70 °C	-10 °C	-10 °C	4600 RPM	312 Pa	1.25 in H2O	IP69K - Dust Tight High Temp Water Jets Waterproof	1.9 lbs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 283.1 CFM (7.93mł/min) 2 Wire Leads
