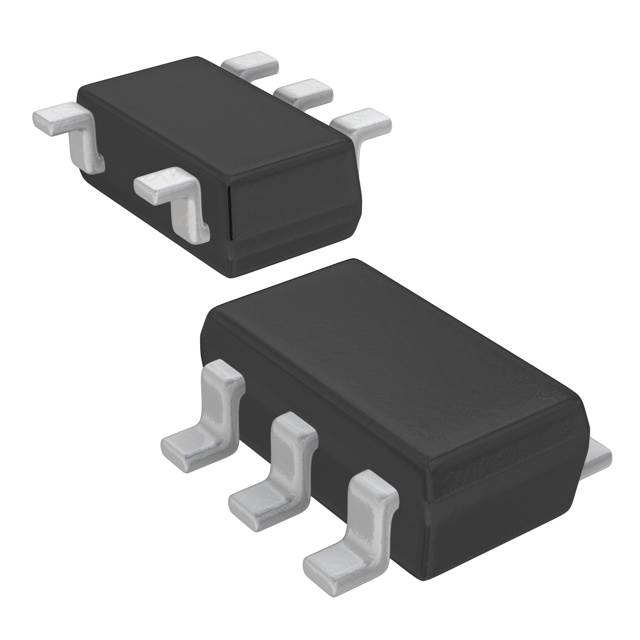

IXD1216C202MR-G

Active

Zilog

IC REG LINEAR 2V 150MA SOT25

Search across all available documentation for this part.

Active

Zilog

IC REG LINEAR 2V 150MA SOT25

Technical Specifications

Parameters and characteristics for this part

Specification	IXD1216C202MR-G

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	9 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SC-74A, SOT-753
Protection Features	Over Current, Over Temperature
PSRR	30 dB
Supplier Device Package	SOT-25
Voltage - Input (Max) [Max]	28 V
Voltage - Output (Min/Fixed) [Min]	2 V
Voltage Dropout (Max) [Max]	2.6 V

Part	Voltage Dropout (Max) [Max]	Protection Features	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	PSRR	Mounting Type	Supplier Device Package	Output Type	Number of Regulators	Output Configuration	Package / Case	Current - Output	Voltage - Output (Min/Fixed) [Min]	Current - Quiescent (Iq)
Zilog IXD1216C202MR-G	2.6 V	Over Current Over Temperature	Enable	28 V	85 °C	-40 °C	30 dB	Surface Mount	SOT-25	1.81 mOhm	1	Positive	SC-74A SOT-753	150 mA	2 V	9 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	24000	$ 0.29

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-25
