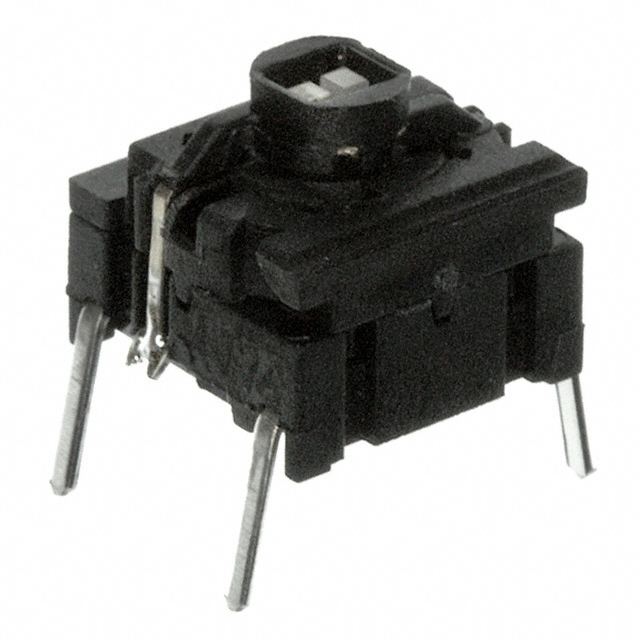

4ATH98222

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	4ATH98222

Actuator Height off PCB, Vertical	8.4 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC, 2.2 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

Part	Operating Force	Features	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Illumination Type, Color	Illumination	Switch Function	Switch Travel	Circuit	Mechanical Life	Outline [x]	Outline [y]	Contact Rating @ Voltage	Mounting Type	Actuator Orientation	Actuator Material	Illumination Voltage (Nominal)	Termination Style	Ingress Protection
MEC Switches 4ATH98222	300 gf	Sealed - Flux Protection	8.4 mm	-30 ░C	85 °C	Plunger for Cap	Green/Red LED	Illuminated	Off-Mom	1 mm	SPST-NO	10000000 Cycles	10.1 mm	10.1 mm	0.05 A 24 VDC	Through Hole	Top Actuated	Polyphenylene Sulfide (PPS)	2 VDC 2.2 VDC	PC Pin	IP67 - Dust Tight Waterproof
MEC Switches 4ATH942	300 gf	Sealed - Flux Protection	8.4 mm	-30 ░C	85 °C	Plunger for Cap	LED Yellow	Illuminated	Off-Mom	1 mm	SPST-NO	10000000 Cycles	10.1 mm	10.1 mm	0.05 A 24 VDC	Through Hole	Top Actuated	Polyphenylene Sulfide (PPS)	2 VDC	PC Pin	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
