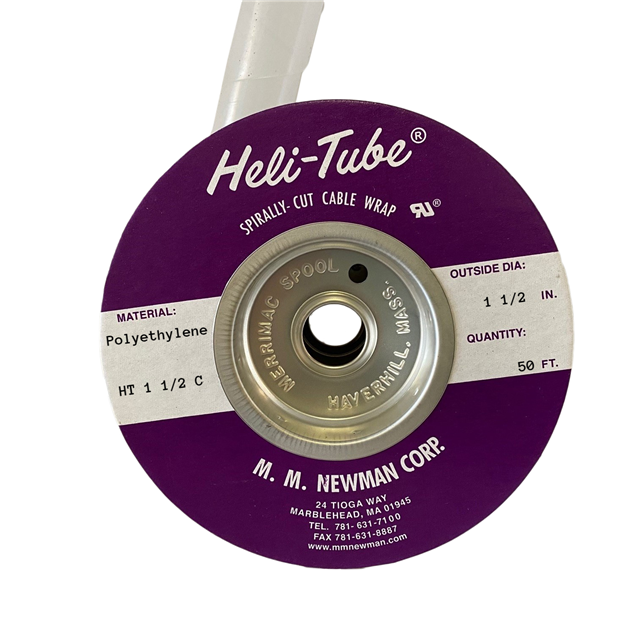

HT 1 1/2 C

Active

MM Newman Corporation

SPIRAL WRAP 1.3" X 50' NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 1 1/2 C

Active

MM Newman Corporation

SPIRAL WRAP 1.3" X 50' NATURAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HT 1 1/2 C

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	254 mm
Diameter - Inside, Expanded [diameter]	10 in
Diameter - Inside, Non-Expanded [diameter]	1.3 "
Diameter - Inside, Non-Expanded [diameter]	33.02 mm
Diameter - Outside, Non-Expanded [diameter]	1.5 in
Diameter - Outside, Non-Expanded [diameter]	38.1 mm
Features	Solvent Resistant, Chemical Resistant
Length	15.24 m
Length [x]	50 ft
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	2.54 mm
Wall Thickness [custom]	0.1 in

HT 1 Series

Part	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Length	Length	Type	Wall Thickness	Wall Thickness	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material	Abrasion Protection	Operating Temperature [Min]	Operating Temperature [Max]	Type Attributes	Features	Length [x]	Wall Thickness [custom]	Wall Thickness [custom]	Environment Protection	Material Flammability Rating	Heat Protection
MM Newman Corporation HT 1 C YE	7 in	177.8 mm	100 ft	30.48 m	Spiral Wrap	2.03 mm	0.08 in	Yellow	21.34 mm	0.84 in	25.4 mm	1 "	Polyethylene (PE)	Abrasion Resistant	-60 °C	88 °C	Harness	Chemical Resistant Solvent Resistant
MM Newman Corporation HT 1 UR	7 in	177.8 mm	100 ft	30.48 m	Spiral Wrap	2.03 mm	0.08 in	Black	21.34 mm	0.84 in	25.4 mm	1 "	Polyethylene (PE)	Abrasion Resistant	-60 °C	88 °C	Harness	Chemical Resistant Solvent Resistant
MM Newman Corporation HT 1 1/2 C	10 in	254 mm		15.24 m	Spiral Wrap			Natural	33.02 mm	1.3 "	38.1 mm	1.5 in	Polyethylene (PE)	Abrasion Resistant	-60 °C	88 °C	Harness	Chemical Resistant Solvent Resistant	50 ft	2.54 mm	0.1 in
MM Newman Corporation HT 1 N-B	7 in	177.8 mm	100 ft	30.48 m	Spiral Wrap	0.81 mm	0.032 in	Black	23.77 mm	0.936 in	25.4 mm	1 "	Nylon	Abrasion Resistant	-40 °C	121 °C	Harness	Chemical Resistant Self Extinguishing Solvent Resistant				UV Resistant
MM Newman Corporation HT 1 C WH	7 in	177.8 mm	100 ft	30.48 m	Spiral Wrap	2.03 mm	0.08 in	White	21.34 mm	0.84 in	25.4 mm	1 "	Polyethylene (PE)	Abrasion Resistant	-60 °C	88 °C	Harness	Chemical Resistant Solvent Resistant
MM Newman Corporation HT 1 R	7 in	177.8 mm	100 ft	30.48 m	Spiral Wrap	2.03 mm	0.08 in	White	21.34 mm	0.84 in	25.4 mm	1 "	Polyethylene (PE)	Abrasion Resistant	-20 C	80 C	Harness	Chemical Resistant Solvent Resistant					UL94 V-2 UL1441	Fire Resistant
MM Newman Corporation HT 1 C	7 in	177.8 mm	100 ft	30.48 m	Spiral Wrap	2.03 mm	0.08 in	Natural	21.34 mm	0.84 in	25.4 mm	1 "	Polyethylene (PE)	Abrasion Resistant	-60 °C	88 °C	Harness	Chemical Resistant Solvent Resistant
MM Newman Corporation HT 1 1/2 UR	10 in	254 mm		15.24 m	Spiral Wrap			Black	33.02 mm	1.3 "	38.1 mm	1.5 in	Polyethylene (PE)	Abrasion Resistant	-60 °C	88 °C	Harness	Chemical Resistant Solvent Resistant	50 ft	2.54 mm	0.1 in
MM Newman Corporation HT 1 1/4 C	8 in	203.2 mm		15.24 m	Spiral Wrap	2.29 mm	0.09 in	Natural			31.75 mm	1.25 in	Polyethylene (PE)	Abrasion Resistant	-60 °C	88 °C	Harness	Chemical Resistant Solvent Resistant	50 ft
MM Newman Corporation HT 1 T	5 in	127 mm	100 ft	30.48 m	Spiral Wrap	1.02 mm	0.04 in	Natural	23.37 mm	0.92 in	25.4 mm	1 "	Polytetrafluoroethylene (PTFE)	Abrasion Resistant	-268 °C	260 ░C	Harness	Chemical Resistant Solvent Resistant				UV Resistant	UL VW-1 UL94 V-0	Fire Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 254.95
		20	$ 190.06

Description

General part information

HT 1 Series

Spiral Wrap 1.500" (38.10mm) X 50.00' (15.24m) Natural
