LCMXO2-4000HE-4MG184I

Active

LATTICE SEMICONDUCTOR

LATTICE MACHXO2 HIGH PERFORMANCE

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

LATTICE MACHXO2 HIGH PERFORMANCE

Technical Specifications

Parameters and characteristics for this part

Specification	LCMXO2-4000HE-4MG184I

Mounting Type	Surface Mount
Number of LABs/CLBs	540
Number of Logic Elements/Cells	4320
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C

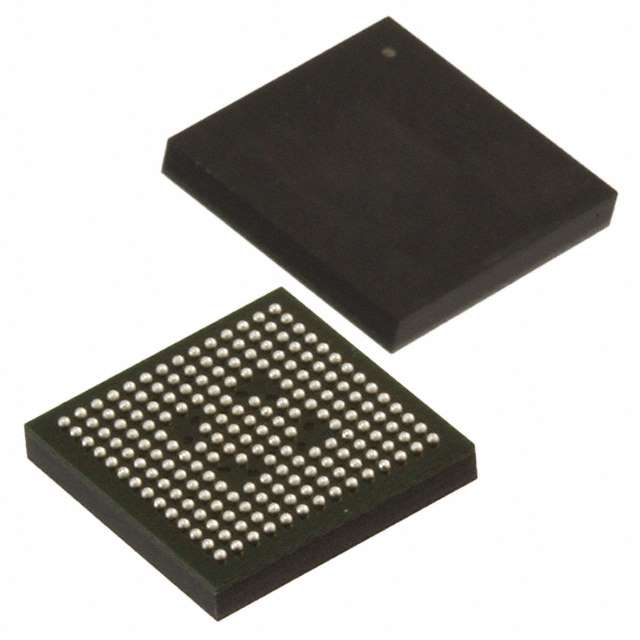

Package / Case	184-LFBGA, CSPBGA
Supplier Device Package	184-CSBGA (8x8)
Total RAM Bits	94208 Bits

Part	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Mounting Type	Total RAM Bits	Number of LABs/CLBs	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package
LATTICE SEMICONDUCTOR LCMXO2-4000HC-4FTG256C	206 I/O	0 °C	85 °C	4320	Surface Mount	94208 Bits	540	256-LBGA	2.375 V	3.465 V	256-FTBGA (17x17)
LATTICE SEMICONDUCTOR LCMXO2-4000ZE-1FTG256C	206 I/O	0 °C	85 °C	4320	Surface Mount	94208 Bits	540	256-LBGA			256-FTBGA (17x17)
LATTICE SEMICONDUCTOR LCMXO2-4000HE-4MG184I		-40 C	100 °C	4320	Surface Mount	94208 Bits	540	184-LFBGA CSPBGA			184-CSBGA (8x8)
LATTICE SEMICONDUCTOR LCMXO2-4000HE-6BG332C	274	0 °C	85 °C	4320	Surface Mount	94208 Bits	540	332-FBGA			332-CABGA (17x17)
LATTICE SEMICONDUCTOR LCMXO2-4000HE-5FG484C	278	0 °C	85 °C	4320	Surface Mount	94208 Bits	540	484-BBGA			484-FBGA (23x23)
LATTICE SEMICONDUCTOR LCMXO2-4000ZE-1FG484I	278	-40 C	100 °C	4320	Surface Mount	94208 Bits	540	484-BBGA			484-FBGA (23x23)
LATTICE SEMICONDUCTOR LCMXO2-4000HE-6TG144I	114	-40 C	100 °C	4320	Surface Mount	94208 Bits	540	144-LQFP			144-TQFP (20x20)
LATTICE SEMICONDUCTOR LCMXO2-4000HE-5BG332I	274	-40 C	100 °C	4320	Surface Mount	94208 Bits	540	332-FBGA			332-CABGA (17x17)
LATTICE SEMICONDUCTOR LCMXO2-4000ZE-1FTG256I	206 I/O	-40 C	100 °C	4320	Surface Mount	94208 Bits	540	256-LBGA			256-FTBGA (17x17)
LATTICE SEMICONDUCTOR LCMXO2-4000ZE-2FTG256C	206 I/O	0 °C	85 °C	4320	Surface Mount	94208 Bits	540	256-LBGA			256-FTBGA (17x17)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	360	$ 18.72
Newark	Each	250	$ 19.59

General part information

MachXO2 Field Programmable Gate Array (FPGA) IC 150 94208 4320 184-LFBGA, CSPBGA
