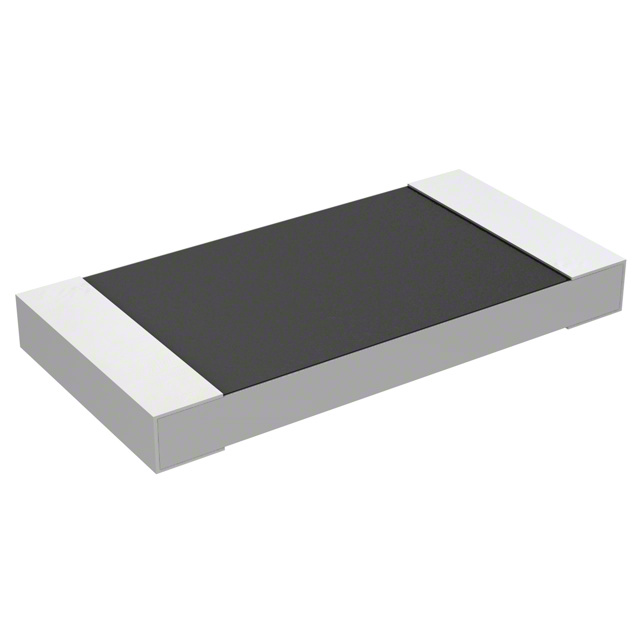

3521220RFT

Active

TE Connectivity Passive Product

RES SMD 220 OHM 1% 2W 2512

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3521220RFT

Active

TE Connectivity Passive Product

RES SMD 220 OHM 1% 2W 2512

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3521220RFT

Composition	Thick Film
Features	Automotive AEC-Q200
Height - Seated (Max) [Max]	0.026 in
Height - Seated (Max) [Max]	0.65 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	6432 Metric
Package / Case	2512
Power (Watts)	2 W
Ratings	AEC-Q200
Resistance	220 Ohms
Size / Dimension [x]	0.248 in
Size / Dimension [x]	6.3 mm
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

3521 Series

Part	Ratings	Temperature Coefficient	Number of Terminations	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Power (Watts)	Resistance	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features
TE Connectivity Passive Product 35211K5FT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	1500 Ohms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 3521270KFT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	270 kOhms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 3521180RFT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	180 Ohms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 3521110RFT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	110 Ohms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 352130RFT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	30 Ohms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 35213K9FT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	3.9 kOhms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 352156RFT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	56 Ohms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 35218K2FT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	8.2 kOhms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 3521220RFT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	220 Ohms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200
TE Connectivity Passive Product 3521820KFT	AEC-Q200	100 ppm/°C	2	0.248 in	6.3 mm	3.2 mm	0.126 "	Thick Film	155 °C	-55 °C	6432 Metric	2512	2 W	820 kOhms	1 %	0.026 in	0.65 mm	Automotive AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.66
		10	$ 0.39
		50	$ 0.30
		100	$ 0.27
		500	$ 0.23
		1000	$ 0.22
	Digi-Reel®	1	$ 0.66
		10	$ 0.39
		50	$ 0.30
		100	$ 0.27
		500	$ 0.23
		1000	$ 0.22
	Tape & Reel (TR)	4000	$ 0.19
		8000	$ 0.18
		12000	$ 0.17
		20000	$ 0.17
		28000	$ 0.17
		40000	$ 0.17

Description

General part information

3521 Series

220 Ohms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film

Documents

Technical documentation and resources
