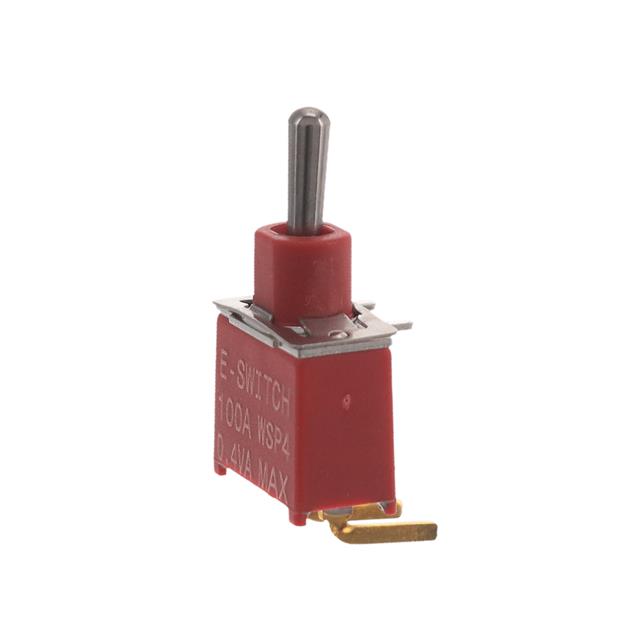

100AWSP4T2B4M6RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

100AWSP4T2B4M6RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100AWSP4T2B4M6RE

Actuator Length [x]	7.62 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

100AWSP4 Series

Part	Ingress Protection	Voltage Rating - DC	Switch Function	Termination Style	Current Rating (Amps)	Actuator Length [x]	Features	Voltage Rating - AC	Illumination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Electrical Life	Actuator Material	Bushing Thread	Actuator Type	Panel Cutout Dimensions [diameter]
E-Switch 100AWSP4T1B4M2RE	IP67 - Dust Tight Waterproof	20 V	Mom-Off-Mom	PC Pin	0.4 VA	0.5 in	Epoxy Sealed Terminals	20 V	Non-Illuminated	Through Hole	-30 ░C	85 °C	SPDT	30000 Cycles	Brass Chrome Plated	Unthreaded	Standard Round
E-Switch 100AWSP4T2B4M7RE	IP67 - Dust Tight Waterproof	20 V	Mom-Off-Mom	PC Pin	0.4 VA	7.62 mm	Epoxy Sealed Terminals	20 V	Non-Illuminated	Right Angle Through Hole Vertical	-30 ░C	85 °C	SPDT	30000 Cycles	Brass Chrome Plated	Unthreaded	Standard Round
E-Switch 100AWSP4T2B4M6RE	IP67 - Dust Tight Waterproof	20 V	Mom-Off-Mom	PC Pin	0.4 VA	7.62 mm	Epoxy Sealed Terminals	20 V	Non-Illuminated	Through Hole Right Angle	-30 ░C	85 °C	SPDT	30000 Cycles	Brass Chrome Plated	Unthreaded	Standard Round
E-Switch 100AWSP4T1B1M1QEH	IP67 - Dust Tight Waterproof	28 V	Mom-Off-Mom	Solder Lug	5 A	10.41 mm	Epoxy Sealed Terminals	120 V	Non-Illuminated		-30 ░C	85 °C	SPDT	30000 Cycles	Brass Chrome Plated	1/4-40	Standard Round	0.25 in
E-Switch 100AWSP4T1B4VS2RE	IP67 - Dust Tight Waterproof	20 V	Mom-Off-Mom	PC Pin	0.4 VA	0.5 in	Epoxy Sealed Terminals	20 V	Non-Illuminated	Through Hole	-30 ░C	85 °C	SPDT	30000 Cycles	Brass Chrome Plated	Unthreaded	Standard Round
E-Switch 100AWSP4T1B4VS2QE	IP67 - Dust Tight Waterproof	28 V	Mom-Off-Mom	PC Pin	5 A	0.5 in	Epoxy Sealed Terminals	120 V	Non-Illuminated	Through Hole	-30 ░C	85 °C	SPDT	30000 Cycles	Brass Chrome Plated	Unthreaded	Standard Round
E-Switch 100AWSP4T1B4M1QE	IP67 - Dust Tight Waterproof	28 V	Mom-Off-Mom	Solder Lug	5 A	0.5 in	Epoxy Sealed Terminals	120 V	Non-Illuminated		-30 ░C	85 °C	SPDT	30000 Cycles	Brass Chrome Plated	Unthreaded	Standard Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.14
		10	$ 3.73
		25	$ 3.55
		54	$ 3.40
		108	$ 3.29

Description

General part information

100AWSP4 Series

Toggle Switch SPDT Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
