0234006.MXF11P

Active

Littelfuse/Commercial Vehicle Products

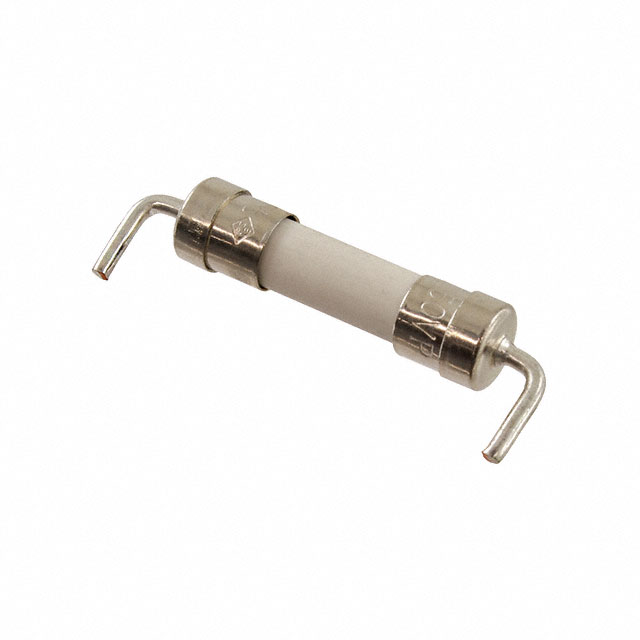

FUSE 5X20 PGT RAD. FORMED M 6A/250V (P)/ BULK

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE 5X20 PGT RAD. FORMED M 6A/250V (P)/ BULK

Technical Specifications

Parameters and characteristics for this part

Specification	0234006.MXF11P

Approval Agency	UL, CE, PSE, K-Mark, CSA
Breaking Capacity @ Rated Voltage	200 A
Current Rating (Amps)	6 A
DC Cold Resistance	0.0194 Ohms
Fuse Type	Cartridge, Ceramic
Melting I²t	33.015
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Medium Blow
Size / Dimension [diameter]	5.2 mm
Size / Dimension [diameter]	0.205 in
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Voltage Rating - AC	250 V

FUSE 5x20 M 6A/250V (P)

Part	Melting I²t	Operating Temperature [Min]	Operating Temperature [Max]	DC Cold Resistance	Mounting Type	Package / Case [y]	Package / Case [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Response Time	Fuse Type	Voltage Rating - AC	Approval Agency	Breaking Capacity @ Rated Voltage	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products 0234006.MXF11P	33.015	-55 °C	125 °C	0.0194 Ohms	Requires Holder	20 mm	5 mm	0.787 in	5.2 mm	20 mm	0.205 in	Medium Blow	Cartridge Ceramic	250 V	CE CSA K-Mark PSE UL	200 A	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.23
Newark	Each	1000	$ 1.32
		2500	$ 1.18

General part information

5x20mm meduim- acting glass body fuse designed to UL specification.
