Technical Specifications
Parameters and characteristics for this part
| Specification | M22-1920005 |
|---|---|
| Color | Red |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.13 µm |
| Contact Finish Thickness | 5.11 µin |
| Current Rating (Amps) | 2 A |
| Gender | Female Sockets |
| Height [z] | 3.5 mm |
| Height [z] | 0.138 in |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Type | Open Top |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.40 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.30 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.19 | |||
| 3000 | $ 0.17 | |||
Description
General part information
M22-192 Series

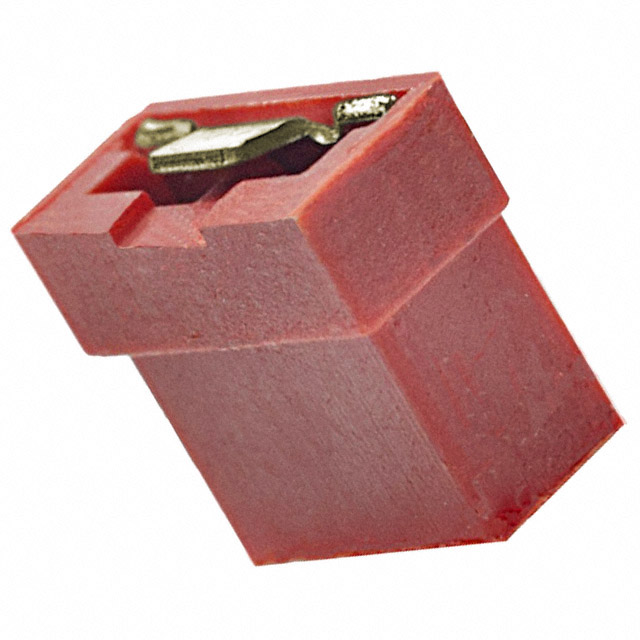

2 (1 x 2) Position Shunt Connector Red Open Top 0.079" (2.00mm) Gold
Documents
Technical documentation and resources
