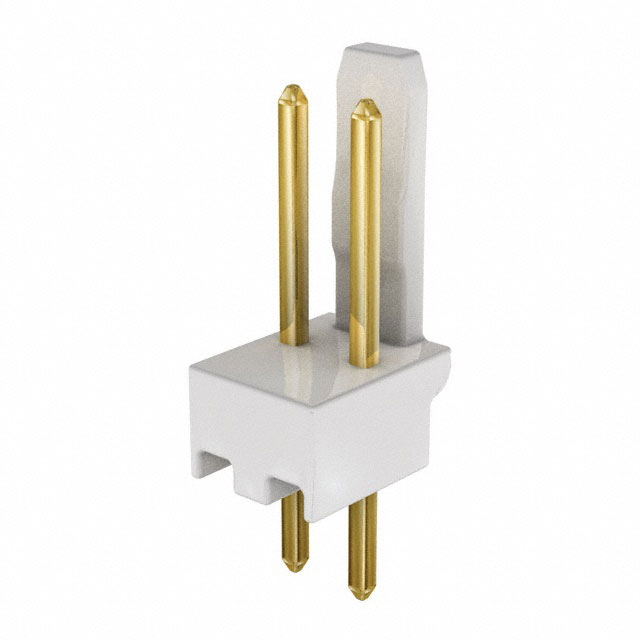

0022111021

Active

Molex

PLUGIN WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

DocumentsProduct Specification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022111021

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	13.8 µin
Contact Finish Thickness - Mating	0.35 µm
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	11.7 mm
Insulation Height	0.461 "
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

002211 Series

KK 254 Solid Header, Vertical, with Friction Lock, 21 Circuits, Tin (Sn) Plating

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Material	Number of Rows	Mounting Type	Shrouding	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Number of Positions	Style	Contact Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Shape	Overall Contact Length	Overall Contact Length	Termination	Insulation Color	Number of Positions Loaded	Applications	Number of Positions Loaded	Insulation Height	Insulation Height
Molex 0022112095
Molex 0022112282	0.1 in	2.54 mm	Gold	Nylon Polyamide (PA)	2.54 µm	100 µin	3.56 mm	0.14 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in	28	Board to Board Cable	Male Pin	Friction Lock	0.51 µm	20 µin	Tin	0.322 "	8.18 mm	Square	14.22 mm	0.56 in	Solder	White	All	Automotive General Purpose Medical Telecommunications
Molex 0022112232	0.1 in	2.54 mm	Gold	Nylon Polyamide (PA)	2.54 µm	100 µin	3.56 mm	0.14 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in	23	Board to Board Cable	Male Pin	Friction Lock	0.51 µm	20 µin	Tin	0.322 "	8.18 mm	Square	14.22 mm	0.56 in	Solder	White	All	Automotive General Purpose Medical Telecommunications
Molex 0022112032	0.1 in	2.54 mm	Gold	Nylon Polyamide (PA)	2.54 µm	100 µin	3.56 mm	0.14 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in		Board to Board Cable	Male Pin	Friction Lock	0.51 µm	20 µin	Tin	0.322 "	8.18 mm	Square	14.22 mm	0.56 in	Solder	White	All	Automotive General Purpose Medical Telecommunications
Molex 0022112108	0.1 in	2.54 mm	Gold	Nylon Polyamide (PA)	2.54 µm	100 µin	3.56 mm	0.14 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in	10	Board to Board Cable	Male Pin	Friction Lock	0.76 Ám	30 Áin	Tin	0.322 "	8.18 mm	Square	14.22 mm	0.56 in	Solder	White	All	Automotive General Purpose Medical Telecommunications
Molex 0022112262	0.1 in	2.54 mm	Gold	Nylon Polyamide (PA)	2.54 µm	100 µin	3.56 mm	0.14 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in	26	Board to Board Cable	Male Pin	Friction Lock	0.51 µm	20 µin	Tin	0.322 "	8.18 mm	Square	14.22 mm	0.56 in	Solder	White	All	Automotive General Purpose Medical Telecommunications
Molex 0022112248	0.1 in	2.54 mm	Gold	Nylon Polyamide (PA)	2.54 µm	100 µin	3.56 mm	0.14 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in	24	Board to Board Cable	Male Pin	Friction Lock	0.51 µm	20 µin	Tin	0.322 "	8.18 mm	Square	7.49 mm	0.295 in	Solder	White		Automotive General Purpose Medical Telecommunications	23
Molex 0022111021	0.098 in	2.5 mm	Gold	Nylon Polyamide (PA)			3.4 mm	0.134 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in	2	Board to Cable/Wire	Male Pin	Friction Lock	0.35 µm	13.8 µin				Square	14.2 mm	0.559 in	Solder	Natural	All			11.7 mm	0.461 "
Molex 0022111051	0.098 in	2.5 mm	Gold	Nylon Polyamide (PA)			3.4 mm	0.134 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in		Board to Cable/Wire	Male Pin	Friction Lock	0.35 µm	13.8 µin				Square	14.2 mm	0.559 in	Solder	Natural	All			11.7 mm	0.461 "
Molex 0022112152	0.1 in	2.54 mm	Gold	Nylon Polyamide (PA)	2.54 µm	100 µin	3.56 mm	0.14 in	Header	Brass	1	Through Hole	Shrouded - 1 Wall	UL94 V-0	7.49 mm	0.295 in	15	Board to Board Cable	Male Pin	Friction Lock	0.51 µm	20 µin	Tin	0.322 "	8.18 mm	Square	14.22 mm	0.56 in	Solder	White	All	Automotive General Purpose Medical Telecommunications
