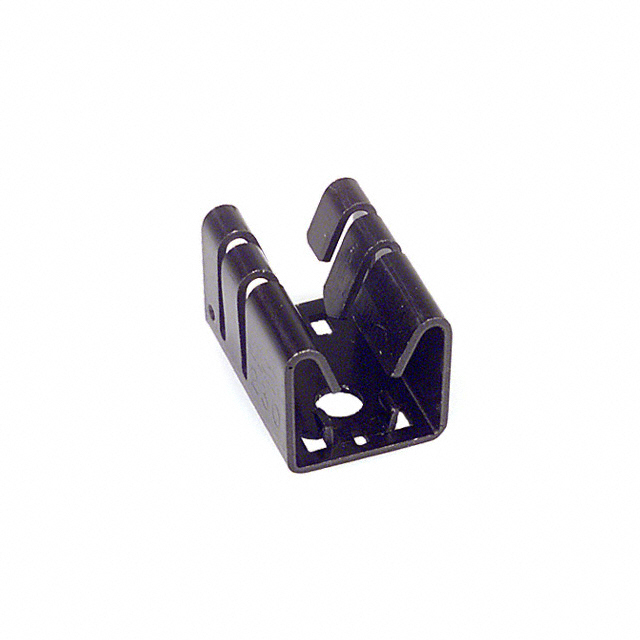

230-75AB

Active

Wakefield-Vette

HEATSINK TO-220 VERT/HORZ BLK

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 VERT/HORZ BLK

Technical Specifications

Parameters and characteristics for this part

Specification	230-75AB

Attachment Method	Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	19.05 mm
Length	0.75 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	2 W, 57 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	7.5 °C/W, 400 LFM
Thermal Resistance @ Natural	28.5 °C/W
Type	Board Level
Width [y]	14.47 mm
Width [y]	0.57 in

Part	Power Dissipation @ Temperature Rise	Fin Height [z]	Fin Height [z]	Length	Length	Thermal Resistance @ Natural	Material Finish	Thermal Resistance @ Forced Air Flow	Shape	Package Cooled	Material	Width [y]	Width [y]	Type	Attachment Method
Wakefield-Vette 230-75AB	2 W 57 °C	12.7 mm	0.5 in	19.05 mm	0.75 in	28.5 °C/W	Black Anodized	7.5 °C/W 400 LFM	Rectangular Fins	TO-220	Aluminum	14.47 mm	0.57 in	Board Level	Bolt On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 2.0W @ 57°C Board Level
