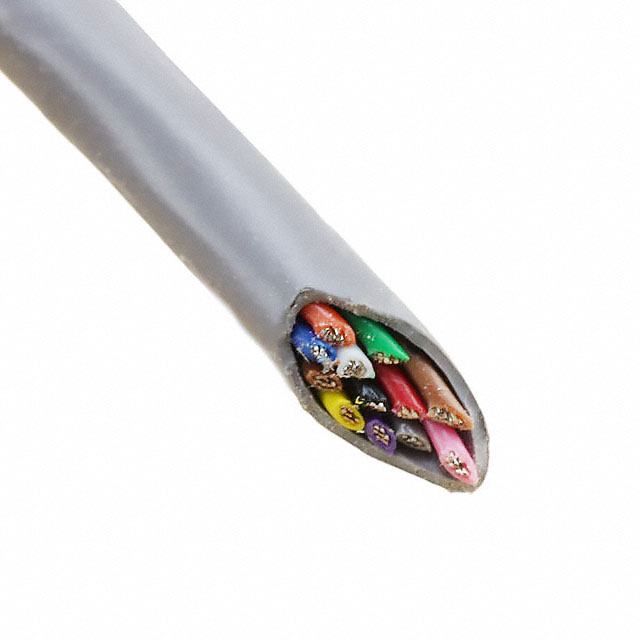

M13412 SL199

Active

ALPHA WIRE

CABLE 12COND 20AWG SLATE 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 20AWG SLATE 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M13412 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.336 "
Jacket (Insulation) Diameter [diameter]	8.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Voltage	300 V
Wire Gauge	20 AWG

Part	Voltage	Cable Type	Conductor Material	Ratings	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Number of Conductors	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE M13412 SL199	300 V	Multi-Conductor	Copper Tinned	UL Style 2464	914.4 m	3000 ft	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Poly-Vinyl Chloride (PVC)	12	Slate	20 AWG	28	7	0.336 "	8.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.60

General part information

12 Conductor Multi-Conductor Cable Slate 20 AWG 3000' (914.4m)
