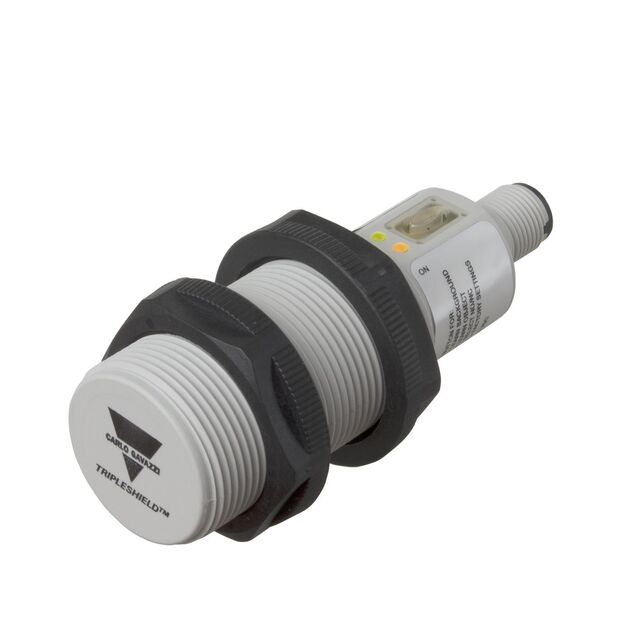

CA30CLC30BPM1
ObsoleteCARLO GAVAZZI
SENSOR PROX CAP 30MM IP68 CYLIND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA30CLC30BPM1
ObsoleteCARLO GAVAZZI
SENSOR PROX CAP 30MM IP68 CYLIND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CA30CLC30BPM1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP68 |
| Material - Body | Plastic |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | NPN/PNP-NC/NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 15 Hz |
| Sensing Distance | 1.181 in |
| Sensing Distance | 30 mm |
| Sensor Type | Capacitive |
| Shielding | Shielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 40 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 431.30 | |
| 5 | $ 409.74 | |||
Description
General part information
CA30CLC30 Series
SENSOR PROX CAP 30MM IP68 CYLIND
