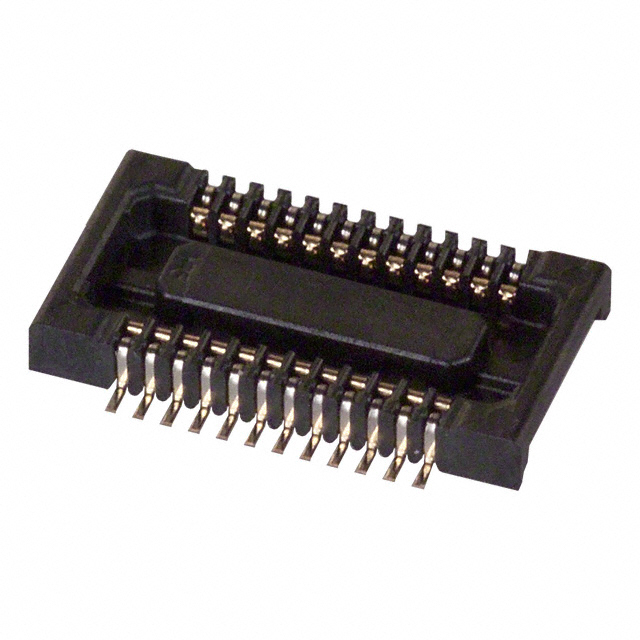

DF30CJ-24DS-0.4V(82)

LTB

Hirose Electric USA, Inc.

CONN RCPT 24POS SMD GOLD

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN RCPT 24POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF30CJ-24DS-0.4V(82)

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.88 mm
Height Above Board	0.035 "
Mated Stacking Heights	1.2 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Contact Finish	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights
Hirose Electric USA, Inc. DF30CJ-24DS-0.4V(82)	24	Gold	Receptacle Outer Shroud Contacts	Surface Mount	0.016 in	0.4 mm	2	0.88 mm	0.035 "	1.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 2.42

General part information

24 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
