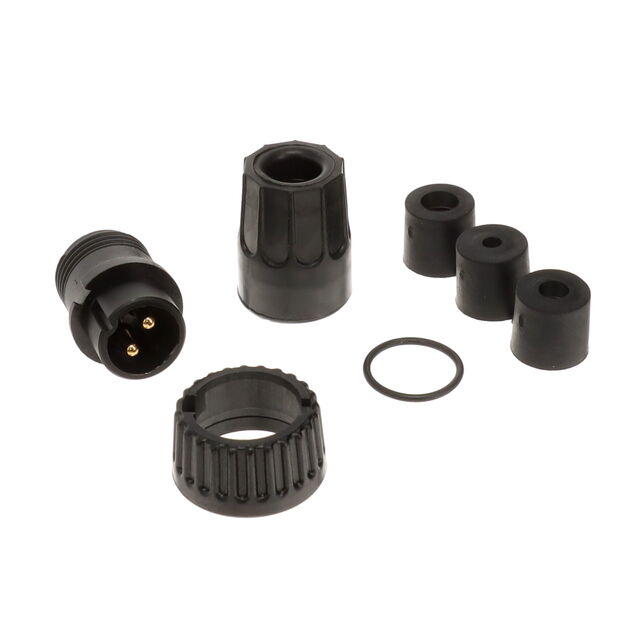

3182-2PG-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3182-2PG-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3182-2PG-3DC

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3182-2P Series

Part	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Connector Type	Contact Material	Shielding	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Ingress Protection	Number of Positions	Contact Finish - Mating	Primary Material	Orientation	Backshell Material, Plating	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3182-2PG-518	4.57 mm	0.18 in	0.2 in	5.08 mm	Male Pins Plug	Brass	Unshielded	Bayonet Lock	Backshell Cable Clamp	-40 °C	115 °C	Black	Free Hanging (In-Line)	Weathertight	2	Gold	Plastic	Keyed	Nylon Polyamide (PA)	600 V
Conxall/Switchcraft 3182-2PG-3DC					Male Pins Plug	Brass	Unshielded	Bayonet Lock	Backshell	-40 °C	115 °C	Black	Free Hanging (In-Line)	Weathertight	2	Gold	Plastic	Keyed	Nylon Polyamide (PA)	600 V
Conxall/Switchcraft 3182-2PG-524					Male Pins Plug	Brass	Unshielded	Bayonet Lock	Backshell Cable Clamp	-40 °C	115 °C	Black	Free Hanging (In-Line)	Weathertight	2	Gold	Plastic	Keyed	Nylon Polyamide (PA)	600 V	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3182-2PG-324					Male Pins Plug	Brass	Unshielded	Bayonet Lock	Backshell	-40 °C	115 °C	Black	Free Hanging (In-Line)	Weathertight	2	Gold	Plastic	Keyed	Nylon Polyamide (PA)	600 V	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3182-2PG-521					Male Pins Plug	Brass	Unshielded	Bayonet Lock	Backshell Cable Clamp	-40 °C	115 °C	Black	Free Hanging (In-Line)	Weathertight	2	Gold	Plastic	Keyed	Nylon Polyamide (PA)	600 V	0.21 in	5.84 mm	5.33 mm	0.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.81
		10	$ 10.88
		25	$ 10.20
		50	$ 9.71
		100	$ 9.25
		250	$ 8.39
		300	$ 8.56
		500	$ 8.26
		1000	$ 7.87

Description

General part information

3182-2P Series

2 Position Circular Connector Plug, Male Pins Solder Cup
