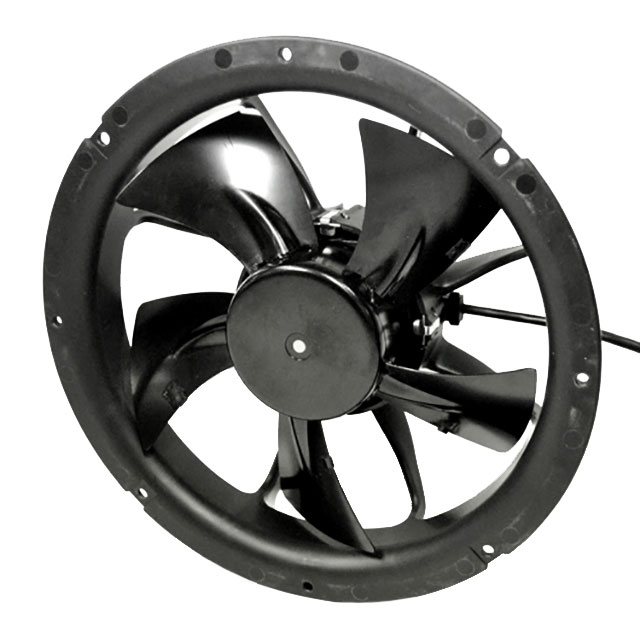

OA200EC-22-1WB

Active

Orion Fans

AC FAN, BALL, 120MM, 3100RPM, 230V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Orion Fans

AC FAN, BALL, 120MM, 3100RPM, 230V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	OA200EC-22-1WB

Air Flow [Max]	460 CFM
Air Flow [Max]	12.88 m³/min
Air Flow [Min]	290 CFM
Air Flow [Min]	8.12 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps) [Max]	0.24 A
Current Rating (Amps) [Min]	0.08 A
Fan Type	Tubeaxial
Features	Electronic Commutation (EC), Thermal Overload Protector (TOP), Dual Speed
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Metal
Noise [Max]	55 dB
Noise [Min]	44 dB
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	27 W, 8.5 W
RPM [Max]	2200 RPM
RPM [Min]	1400 RPM
Size / Dimension [diameter]	250 mm
Static Pressure [Max]	0.46 in H2O
Static Pressure [Max]	114.6 Pa
Static Pressure [Min]	0.28 in H2O
Static Pressure [Min]	69.7 Pa
Termination	3 Wire Leads
Voltage - Rated	230 VAC
Weight	997.9 g
Weight	2.2 lbs
Width [y]	76.1 mm

Part	Termination	Voltage - Rated	Approval Agency	RPM [Min]	RPM [Max]	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow [Min]	Air Flow [Max]	Air Flow [Min]	Air Flow [Max]	Weight	Weight	Static Pressure [Max]	Static Pressure [Min]	Static Pressure [Max]	Static Pressure [Min]	Noise [Max]	Noise [Min]	Features	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Power (Watts)	Bearing Type	Ingress Protection	Size / Dimension [diameter]	Material - Blade	Lifetime @ Temp.	Fan Type
Orion Fans OA200EC-22-1WB	3 Wire Leads	230 VAC	cURus TUV	1400 RPM	2200 RPM	76.1 mm	50 °C	-25 °C	-25 °C	50 °C	290 CFM	460 CFM	8.12 m³/min	12.88 m³/min	997.9 g	2.2 lbs	0.46 in H2O	0.28 in H2O	114.6 Pa	69.7 Pa	55 dB	44 dB	Dual Speed Electronic Commutation (EC) Thermal Overload Protector (TOP)	0.24 A	0.08 A	8.5 W 27 W	Ball	IP55 - Dust Protected Water Resistant	250 mm	Metal	40000 Hrs	Tubeaxial
Orion Fans OA200EC-11-1WB	3 Wire Leads	115 VAC	cURus TUV	1400 RPM	2200 RPM	76.1 mm	50 °C	-25 °C	-25 °C	50 °C	290 CFM	460 CFM	8.12 m³/min	12.88 m³/min	997.9 g	2.2 lbs	0.46 in H2O	0.28 in H2O	114.6 Pa	69.7 Pa	55 dB	44 dB	Dual Speed Electronic Commutation (EC) Thermal Overload Protector (TOP)	0.4 A	0.13 A		Ball	IP55 - Dust Protected Water Resistant	250 mm	Metal	40000 Hrs	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 122.56

General part information

Fan Tubeaxial 230VAC Round - 250mm Dia Ball 290.0 ~ 460.0 CFM (8.12 ~ 12.88m³/min) 3 Wire Leads
