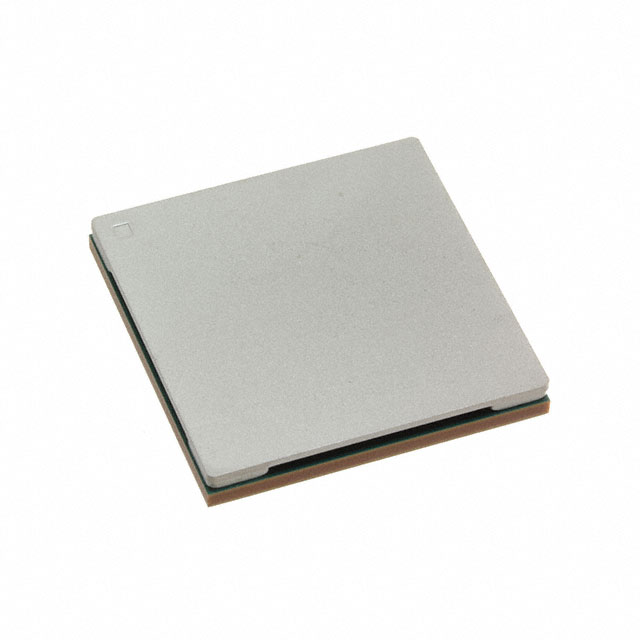

XCKU035-1SFVA784I

Active

AMD

IC FPGA 468 I/O 784FCBGA

Search across all available documentation for this part.

DocumentsKCU105

Active

AMD

IC FPGA 468 I/O 784FCBGA

DocumentsKCU105

Technical Specifications

Parameters and characteristics for this part

Specification	XCKU035-1SFVA784I

Mounting Type	Surface Mount
Number of I/O	468
Number of LABs/CLBs	25391
Number of Logic Elements/Cells	444343
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	784-BFBGA, FCCSP
Supplier Device Package	784-FCCSPBGA (23x23)
Total RAM Bits	19456000
Voltage - Supply [Max]	0.979 V
Voltage - Supply [Min]	0.922 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of LABs/CLBs	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of I/O	Number of Logic Elements/Cells	Total RAM Bits	Supplier Device Package	Mounting Type	Package / Case
AMD XCKU035-L1FBVA676I	100 °C	-40 C	25391	0.88 V	0.979 V	312	444343	19456000	676-FCBGA (27x27)	Surface Mount
AMD XCKU035-2SFVA784E	100 °C	0 °C	25391	0.922 V	0.979 V	468	444343	19456000	784-FCCSPBGA (23x23)	Surface Mount	784-BFBGA FCCSP
AMD XCKU035-3SFVA784E	100 °C	0 °C	25391	0.97 V	1.03 V	468	444343	19456000	784-FCCSPBGA (23x23)	Surface Mount	784-BFBGA FCCSP
AMD XCKU035-2FFVA1156I	100 °C	-40 C	25391	0.922 V	0.979 V	520	444343	19456000	1156-FCBGA (35x35)	Surface Mount	1156-BBGA FCBGA
AMD XCKU035-1SFVA784I	100 °C	-40 C	25391	0.922 V	0.979 V	468	444343	19456000	784-FCCSPBGA (23x23)	Surface Mount	784-BFBGA FCCSP
AMD XCKU035-3FBVA900E	100 °C	0 °C	25391	0.97 V	1.03 V	468	444343	19456000	900-FCBGA (31x31)	Surface Mount	900-BBGA FCBGA
AMD XCKU035-2FBVA676I	100 °C	-40 C	25391	0.922 V	0.979 V	312	444343	19456000	676-FCBGA (27x27)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1715.00

General part information

Kintex® UltraScale™ Field Programmable Gate Array (FPGA) IC 468 19456000 444343 784-BFBGA, FCCSP
