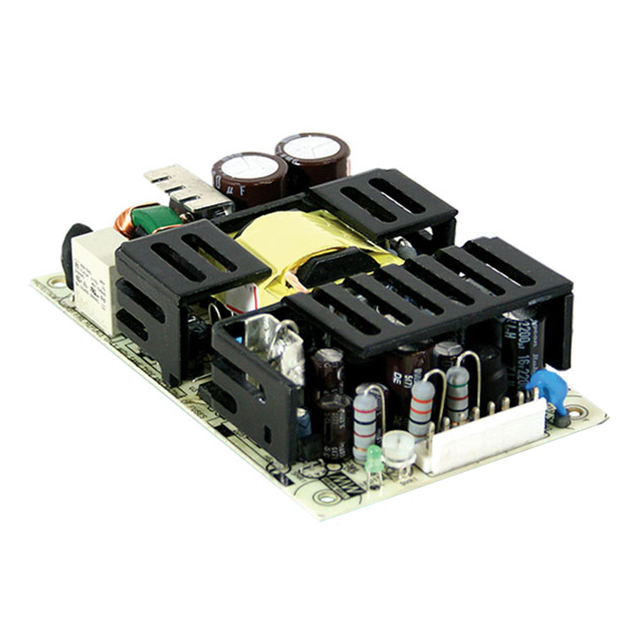

RPT-75C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V +/-15V 72W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V +/-15V 72W

Technical Specifications

Parameters and characteristics for this part

Specification	RPT-75C

Applications	Medical
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	6 A
Current - Output 2	2.3 A
Current - Output 3	500 mA
Efficiency	77 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	72 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	31 mm
Size / Dimension [z]	1.22 in
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

Part	Voltage - Output 3	Type	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Mounting Type	Current - Output 1	Efficiency	Voltage - Output 1	Voltage - Output 2	Approval Agency	Voltage - Isolation	Power (Watts)	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 2	Current - Output 3	Features
MEAN WELL USA Inc. RPT-75A	-5 V	Open Frame	90 VAC 127 VDC	264 VAC 370 VDC	3	Chassis Mount	6 A	76 %	5 V	12 V	CB CE cURus TUV	4000 V	69 W	Medical	5 in	127 mm	31 mm	76.2 mm	1.22 in	3 "	-20 °C	70 °C	3 A	500 mA	Adjustable Output Universal Input
MEAN WELL USA Inc. RPT-75C	-15 V	Open Frame	90 VAC 127 VDC	264 VAC 370 VDC	3	Chassis Mount	6 A	77 %	5 V	15 V	CB CE cURus TUV	4000 V	72 W	Medical	5 in	127 mm	31 mm	76.2 mm	1.22 in	3 "	-20 °C	70 °C	2.3 A	500 mA	Adjustable Output Universal Input
MEAN WELL USA Inc. RPT-75B	-12 V	Open Frame	90 VAC 127 VDC	264 VAC 370 VDC	3	Chassis Mount	6 A	77 %	5 V	12 V	CB CE cURus TUV	4000 V	72 W	Medical	5 in	127 mm	31 mm	76.2 mm	1.22 in	3 "	-20 °C	70 °C	3 A	500 mA	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5V 15V -15V 90 ~ 264 VAC, 127 ~ 370 VDC Input
