RT4532WSC
ActiveRichtek USA Inc.
IC LED DRIVER RGLTR I2C 10WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
RT4532WSC
ActiveRichtek USA Inc.
IC LED DRIVER RGLTR I2C 10WLCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT4532WSC |
|---|---|
| Applications | Backlight |
| Dimming | PWM, I2C |
| Frequency | 1.1 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

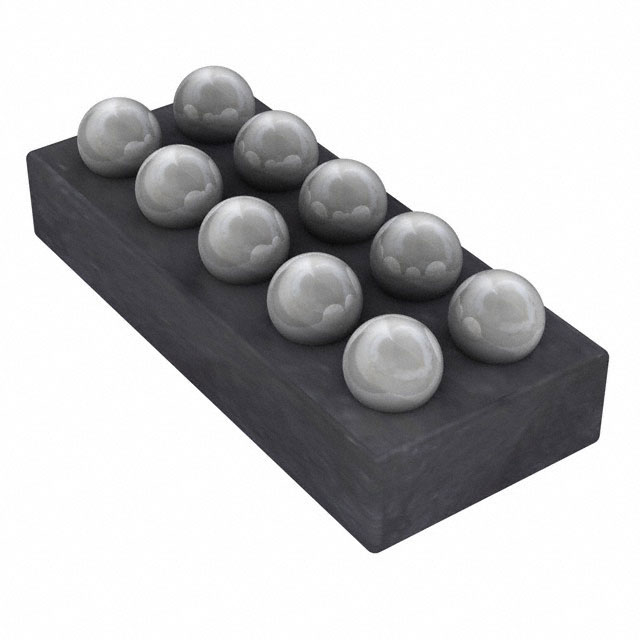

| Package / Case | 10-UFBGA, WLCSP |
| Supplier Device Package | 10-WLCSP |
| Supplier Device Package [x] | 0.87 |
| Supplier Device Package [y] | 2.07 |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.13 | |
| 10 | $ 1.36 | |||
| 25 | $ 1.16 | |||
| 100 | $ 0.93 | |||
| 250 | $ 0.82 | |||
| 500 | $ 0.75 | |||
| Digi-Reel® | 1 | $ 2.13 | ||
| 10 | $ 1.36 | |||
| 25 | $ 1.16 | |||
| 100 | $ 0.93 | |||
| 250 | $ 0.82 | |||
| 500 | $ 0.75 | |||
Description
General part information
RT4532 Series
LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) I2C, PWM Dimming 10-WLCSP (0.87x2.07)
Documents
Technical documentation and resources
No documents available
