VBM211-75

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK R/A 75 OHM PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK R/A 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	VBM211-75

Body Finish	Nickel
Body Material	Zinc Alloy
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyoxymethylene (POM)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Finish	Center Contact Plating	Center Contact Material	Includes	Number of Ports	Dielectric Material	Housing Color	Voltage Rating	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Contact Termination	Mounting Type	Fastening Type	Frequency - Max [Max]	Connector Type	Mating Cycles	Shield Termination	Insertion Loss	Connector Style	Mounting Feature
Cinch Connectivity Solutions Trompeter VBM211-75	Nickel	Gold	Phosphor Bronze	1 Connector 1 Lockwasher 1 Nut	1	Polyoxymethylene (POM)	Silver	500 V	75 Ohms	85 °C	-55 °C	Zinc Alloy	Solder	Panel Mount Right Angle Through Hole	Bayonet Lock	1 GHz	Female Socket Jack	500	Solder	0.2 dB	BNC	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

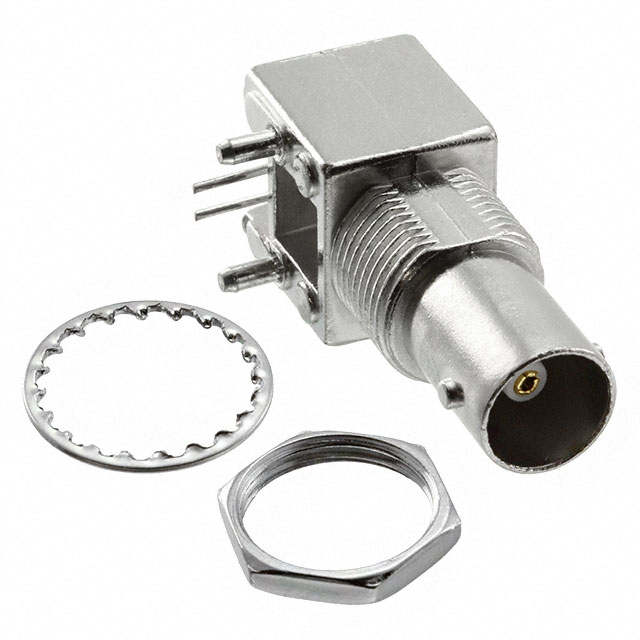

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
