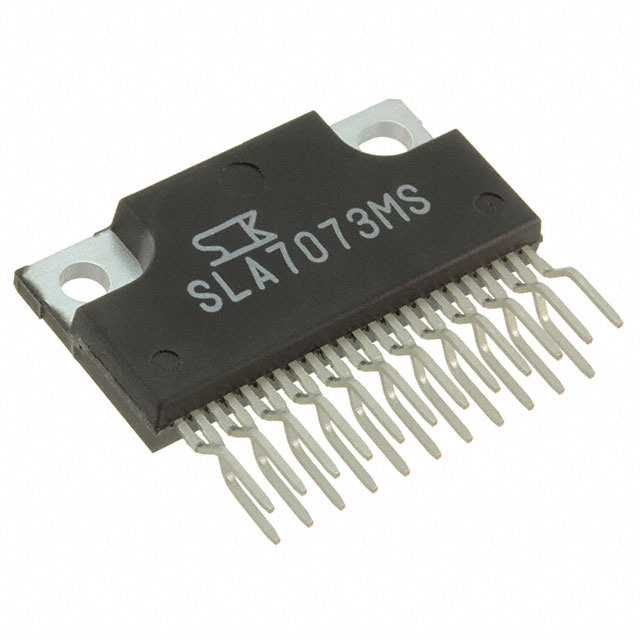

SLA7073MS LF2151

Obsolete

Sanken Electric USA Inc.

IC MTR DRV UNIPOLAR 3-5.5V 23ZIP

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

IC MTR DRV UNIPOLAR 3-5.5V 23ZIP

Technical Specifications

Parameters and characteristics for this part

Specification	SLA7073MS LF2151

Applications	General Purpose
Current - Output	3 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Unipolar
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Low Side (4)
Package / Case	23-SSIP Formed Leads
Step Resolution	1, 0.5
Supplier Device Package	23-ZIP (SLA) LF 2151
Technology	Power MOSFET
Voltage - Load [Max]	44 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

Part	Function	Supplier Device Package	Current - Output	Applications	Mounting Type	Step Resolution	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Output Configuration	Technology	Motor Type - Stepper	Package / Case
Sanken Electric USA Inc. SLA7073MPR	Driver - Fully Integrated Control and Power Stage	23-ZIP (SLA)	3 A	General Purpose	Through Hole	0.5 1	150 °C	-20 °C	10 V	44 V	5.5 V	3 V	Parallel	Low Side (4)	Power MOSFET	Unipolar
Sanken Electric USA Inc. SLA7073MS LF2151	Driver - Fully Integrated Control and Power Stage	23-ZIP (SLA) LF 2151	3 A	General Purpose	Through Hole	0.5 1	150 °C	-20 °C	10 V	44 V	5.5 V	3 V	Parallel	Low Side (4)	Power MOSFET	Unipolar	23-SSIP Formed Leads
Sanken Electric USA Inc. SLA7073MRF
Sanken Electric USA Inc. SLA7073MPRT	Driver - Fully Integrated Control and Power Stage	23-ZIP (SLA)	3 A	General Purpose	Through Hole	0.5 1	150 °C	-20 °C	10 V	44 V	5.5 V	3 V	Parallel	Low Side (4)	Power MOSFET	Unipolar
Sanken Electric USA Inc. SLA7073MR	Driver - Fully Integrated Control and Power Stage	23-ZIP (SLA)	3 A	General Purpose	Through Hole	0.5 1	150 °C	-20 °C	10 V	44 V	5.5 V	3 V	Parallel	Low Side (4)	Power MOSFET	Unipolar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Unipolar Motor Driver Power MOSFET Parallel 23-ZIP (SLA) LF 2151
