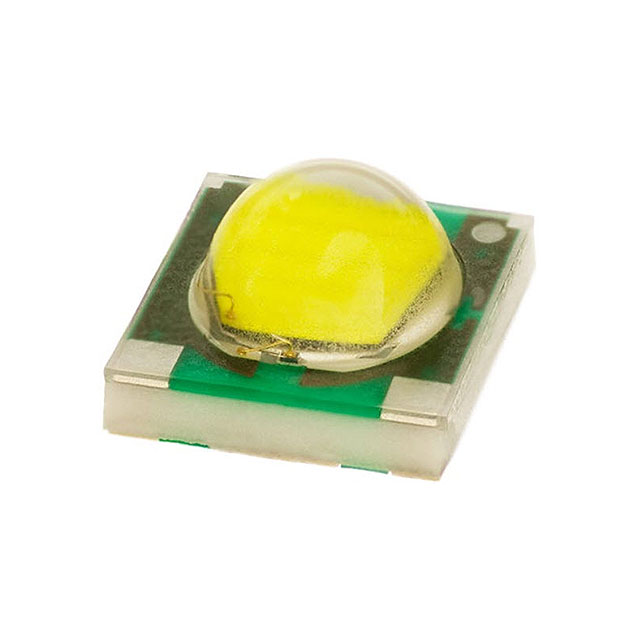

XPGWHT-P1-0000-007E8

Active

Cree LED

XLAMP XP-G LIGHT EMITTING DIODE WARM/NEUTRAL WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPGWHT-P1-0000-007E8

Active

Cree LED

XLAMP XP-G LIGHT EMITTING DIODE WARM/NEUTRAL WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XPGWHT-P1-0000-007E8

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	85
Current - Max [Max]	1.5 A
Current - Test	350 mA
Flux @ 25°C, Current - Test	71 lm
Flux @ 25°C, Current - Test [Max]	74 lm
Flux @ 25°C, Current - Test [Min]	67 lm
Lumens/Watt @ Current - Test	70 lm/W
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Thermal Resistance of Package [custom]	4 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.9 V

XPGWHT Series

...

Part	Mounting Type	Voltage - Forward (Vf) (Typ)	CCT (K)	Current - Max [Max]	Package / Case	Package / Case	Viewing Angle	Thermal Resistance of Package [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Color	Flux @ 25°C, Current - Test	Current - Test	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Cree LED XPGWHT-H1-0000-00JE5	Surface Mount	2.75 V	4000 K	1.5 A	3535 Metric	1414	130 °	1 °C/W	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	Neutral White	152 lm	350 mA	158 lm/W	80
Cree LED XPGWHT-01-R250-00FC1	Surface Mount	2.9 V	5000 K	1.5 A	3535 Metric	1414	125 °		3.45 mm	0.136 in	0.136 in	3.45 mm		Cool White	126 lm	350 mA		70	4 °C/W
Cree LED XPGWHT-P1-0000-007E8	Surface Mount	2.9 V	2700 K	1.5 A	3535 Metric	1414	125 °		3.45 mm	0.136 in	0.136 in	3.45 mm		Warm White	71 lm	350 mA	70 lm/W	85	4 °C/W	67 lm	74 lm
Cree LED XPGWHT-L1-R250-00F51	Surface Mount	2.9 V		1.5 A	3535 Metric	1414	125 °		3.45 mm	0.136 in	0.136 in	3.45 mm		Cool White	126 lm	350 mA		70	4 °C/W
Cree LED XPGWHT-L1-0000-00HE8	Surface Mount	2.75 V	2700 K	1.5 A	3535 Metric	1414	130 °	1 °C/W	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	Warm White	144 lm	350 mA	150 lm/W	80				139 lm	148 lm
Cree LED XPGWHT-H1-0000-00JE7	Surface Mount	2.75 V		1.5 A	3535 Metric	1414	130 °	1 °C/W	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	Warm White	152 lm	350 mA	158 lm/W	80
Cree LED XPGWHT-U1-0000-007Z8	Surface Mount	2.9 V	2700 K	1.5 A	3535 Metric	1414	125 °		3.45 mm	0.136 in	0.136 in	3.45 mm		Warm White	71 lm	350 mA	70 lm/W	90	4 °C/W	67 lm	74 lm
Cree LED XPGWHT-01-0000-00HE5	Surface Mount	2.75 V	4000 K	1.5 A	3535 Metric	1414	130 °	1 °C/W	3.45 mm	0.136 in	0.136 in	3.45 mm	1414	Neutral White	144 lm	350 mA	150 lm/W	70				139 lm	148 lm
Cree LED XPGWHT-L1-0000-00AF8	Surface Mount	2.9 V	2850 K	1.5 A	3535 Metric	1414	125 °		3.45 mm	0.136 in	0.136 in	3.45 mm		Warm White	91 lm	350 mA	90 lm/W	80	4 °C/W	87 lm	94 lm
Cree LED XPGWHT-U1-R250-007F8	Surface Mount	2.9 V	2850 K	1.5 A	3535 Metric	1414	125 °		3.45 mm	0.136 in	0.136 in	3.45 mm		Warm White	71 lm	350 mA	70 lm/W	90	4 °C/W	67 lm	74 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.29
Newark	Each (Supplied on Full Reel)	1	$ 1.63
		3000	$ 1.54
		6000	$ 1.46
		12000	$ 1.31
		18000	$ 1.27
		30000	$ 1.22

Description

General part information

XPGWHT Series

LED Lighting XLamp® XP-G White, Warm 2700K 2.9V 350mA 125° 1414 (3535 Metric)
