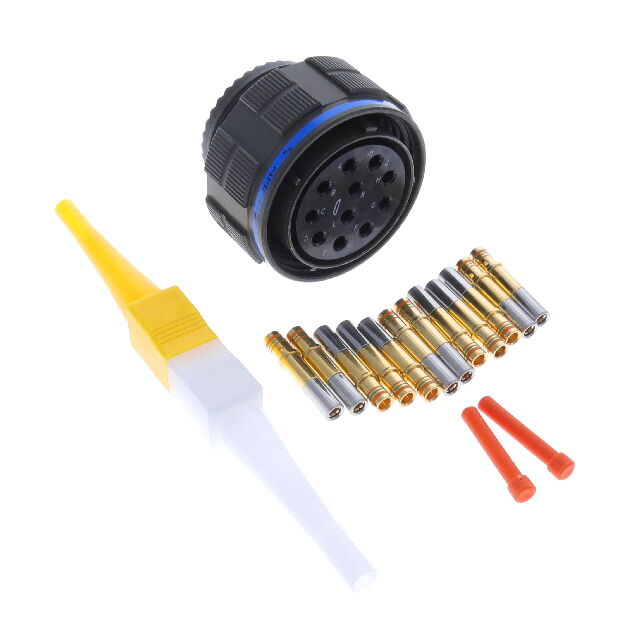

MS27467T15F97PB

Active

Souriau-Sunbank by Eaton

PLUG STRAIGHT CABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS27467T15F97PB

Active

Souriau-Sunbank by Eaton

PLUG STRAIGHT CABLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T15F97PB

Applications	Communication Systems, Military, Medical, Aviation, Marine
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 7.5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	B
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	97
Shell Size - Insert [Min]	15
Shielding	Shielded
Termination	Crimp

MS27467T15F Series

Part	Contact Size	Orientation	Insert Material	Ingress Protection	Shell Material	Note	Mounting Type	Type	Features	Housing Color	Contact Shape	Shell Finish	Shell Size, MIL	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Fastening Type	Qualification	Contact Type	Number of Positions	Grade	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Termination	Contact Material	Primary Material	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Applications	Contact Size	Contact Size
Souriau-Sunbank by Eaton MS27467T15F35P-LC
Souriau-Sunbank by Eaton MS27467T15F19B	20	N	Thermoplastic	Environment Resistant	Aluminum Alloy	Contacts Not Included	Free Hanging (In-Line)	For Female Sockets	Coupling Nut	Silver	Circular	Nickel	D	Shielded	-65 ░C	200 °C	19	15	Bayonet Lock	MIL-DTL-38999 Series I	Crimp	19	Military	Plug Housing
Souriau-Sunbank by Eaton MS27467T15F19P-LC
Souriau-Sunbank by Eaton MS27467T15F18SB		B	Thermoplastic	Environment Resistant	Aluminum Alloy		Free Hanging (In-Line)		Coupling Nut			Nickel		Shielded	-65 ░C	200 °C			Bayonet Lock	MIL-DTL-38999 Series I		18	Military	Female Sockets Plug	Gold	1.27 µm	50 µin	Silver	Crimp	Copper Alloy	Metal	7.5 A	18	15	Aviation Communication Systems Marine Medical Military
Souriau-Sunbank by Eaton MS27467T15F19P		N	Thermoplastic	Environment Resistant	Aluminum Alloy		Free Hanging (In-Line)		Coupling Nut			Nickel	D	Shielded	-65 ░C	200 °C	19	15	Bayonet Lock	MIL-DTL-38999 Series I		19	Military	Male Pins Plug	Gold	1.27 µm	50 µin	Silver	Crimp	Copper Alloy	Metal	7.5 A			Aviation Communication Systems Marine Medical Military
Souriau-Sunbank by Eaton MS27467T15F97PB		B	Thermoplastic	Environment Resistant	Aluminum Alloy		Free Hanging (In-Line)		Coupling Nut			Nickel		Shielded	-65 ░C	200 °C			Bayonet Lock	MIL-DTL-38999 Series I		12	Military	Male Pins Plug	Gold	1.27 µm	50 µin	Silver	Crimp	Copper Alloy	Metal	7.5 A 13 A	97	15	Aviation Communication Systems Marine Medical Military
Souriau-Sunbank by Eaton MS27467T15F19S-LC
Souriau-Sunbank by Eaton MS27467T15F97B		N	Thermoplastic	Environment Resistant	Aluminum Alloy	Contacts Not Included	Free Hanging (In-Line)	For Female Sockets	Coupling Nut	Silver	Circular	Nickel	D	Shielded	-65 ░C	200 °C			Bayonet Lock	MIL-DTL-38999 Series I	Crimp	12	Military	Plug Housing									97	15		4 8 16 20
Souriau-Sunbank by Eaton MS27467T15F35B		N	Thermoplastic	Environment Resistant	Aluminum Alloy	Contacts Not Included	Free Hanging (In-Line)	For Female Sockets	Coupling Nut	Silver	Circular	Nickel	D	Shielded	-65 ░C	200 °C			Bayonet Lock	MIL-DTL-38999 Series I	Crimp	37	Military	Plug Housing									35	15			22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2	$ 91.50
		10	$ 84.18
		50	$ 77.44
		100	$ 71.25
		500	$ 65.55

Description

General part information

MS27467T15F Series

12 Position Circular Connector Plug, Male Pins Crimp
